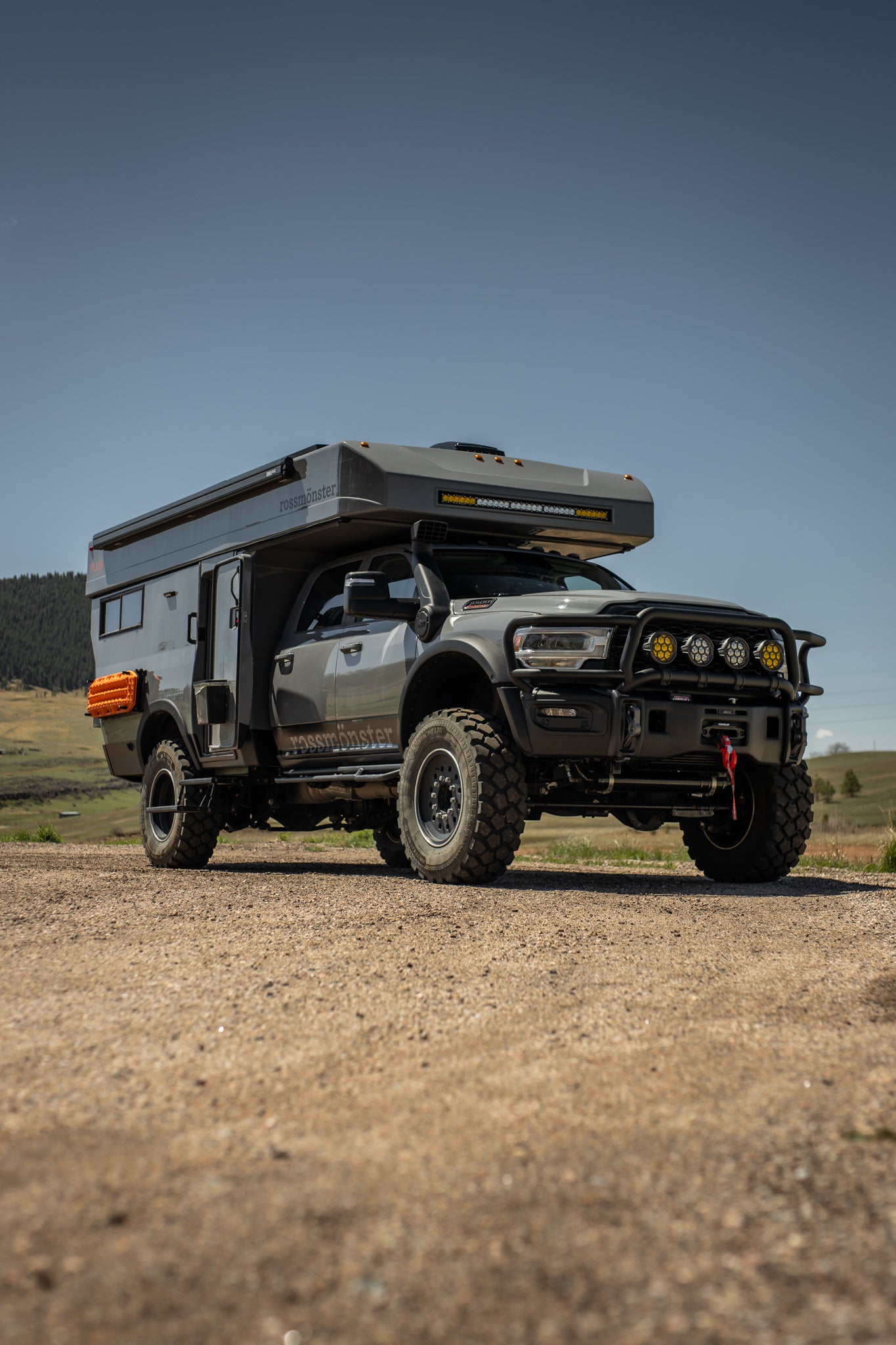

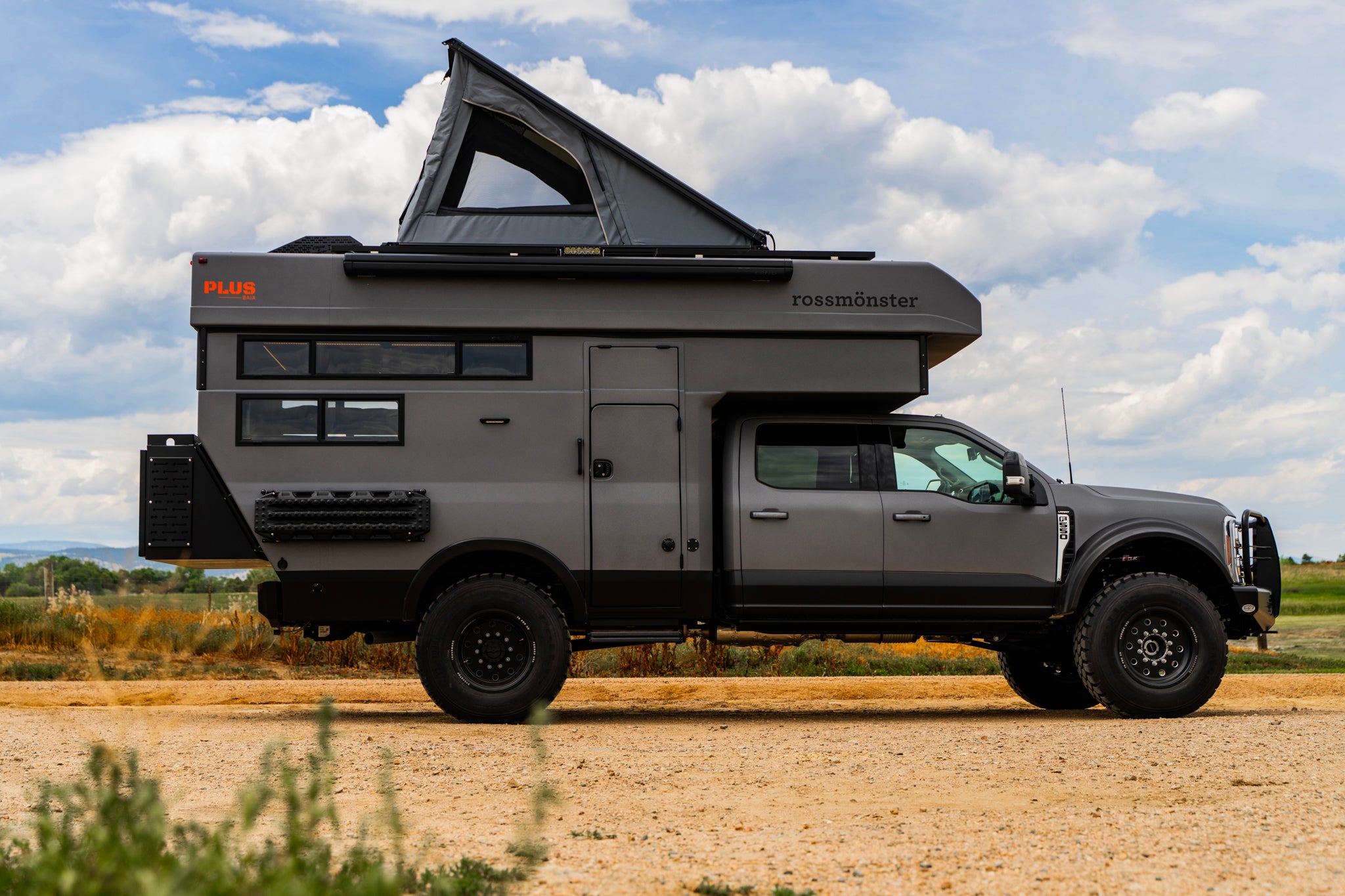

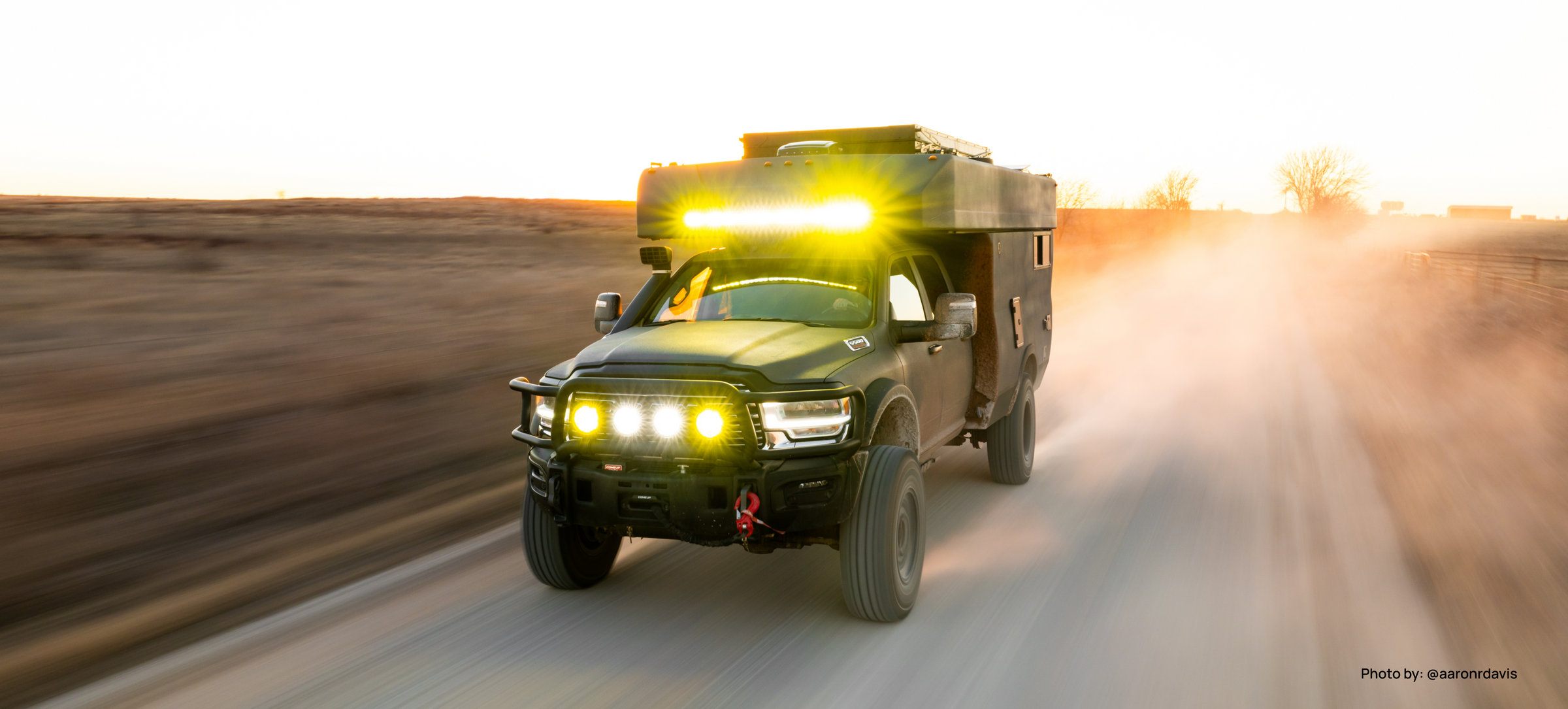

Where functionality, capability and luxury meet. Luxury living quarters on a heavy duty chassis, with the clearance and payload to put them anywhere the Trail goes, and the room to stay longer once you are there.
The most capable rig on trail.

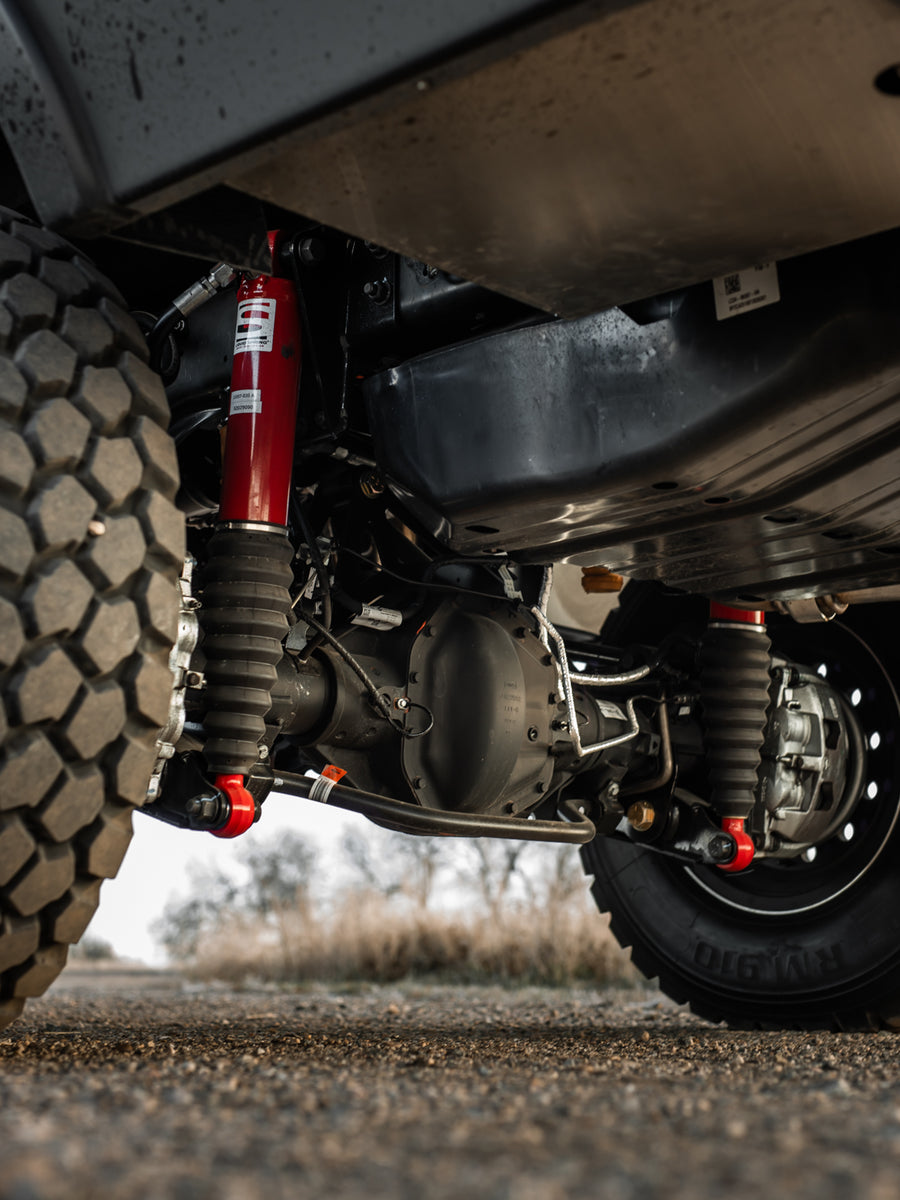

Top-of-the-line, and light for its class

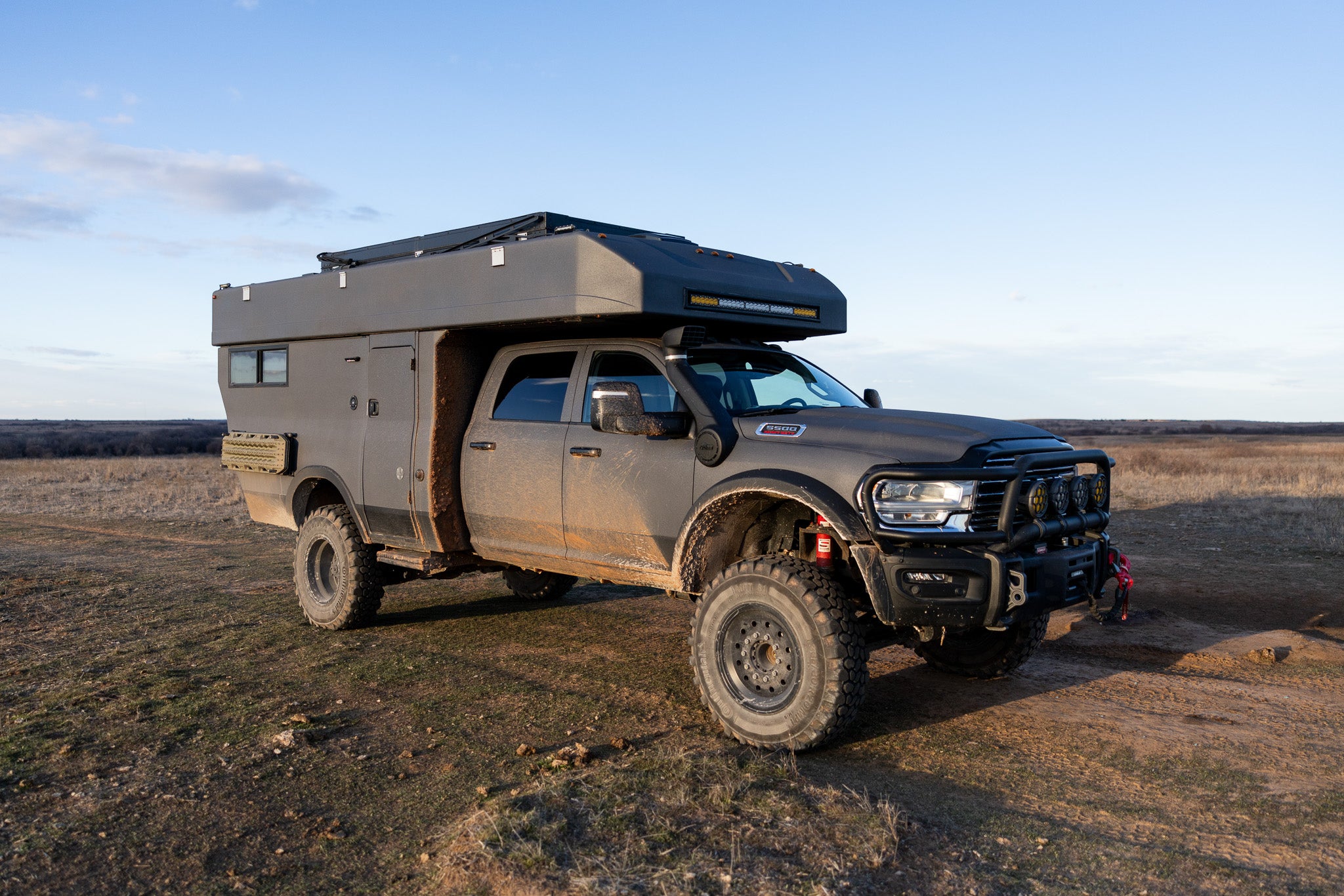

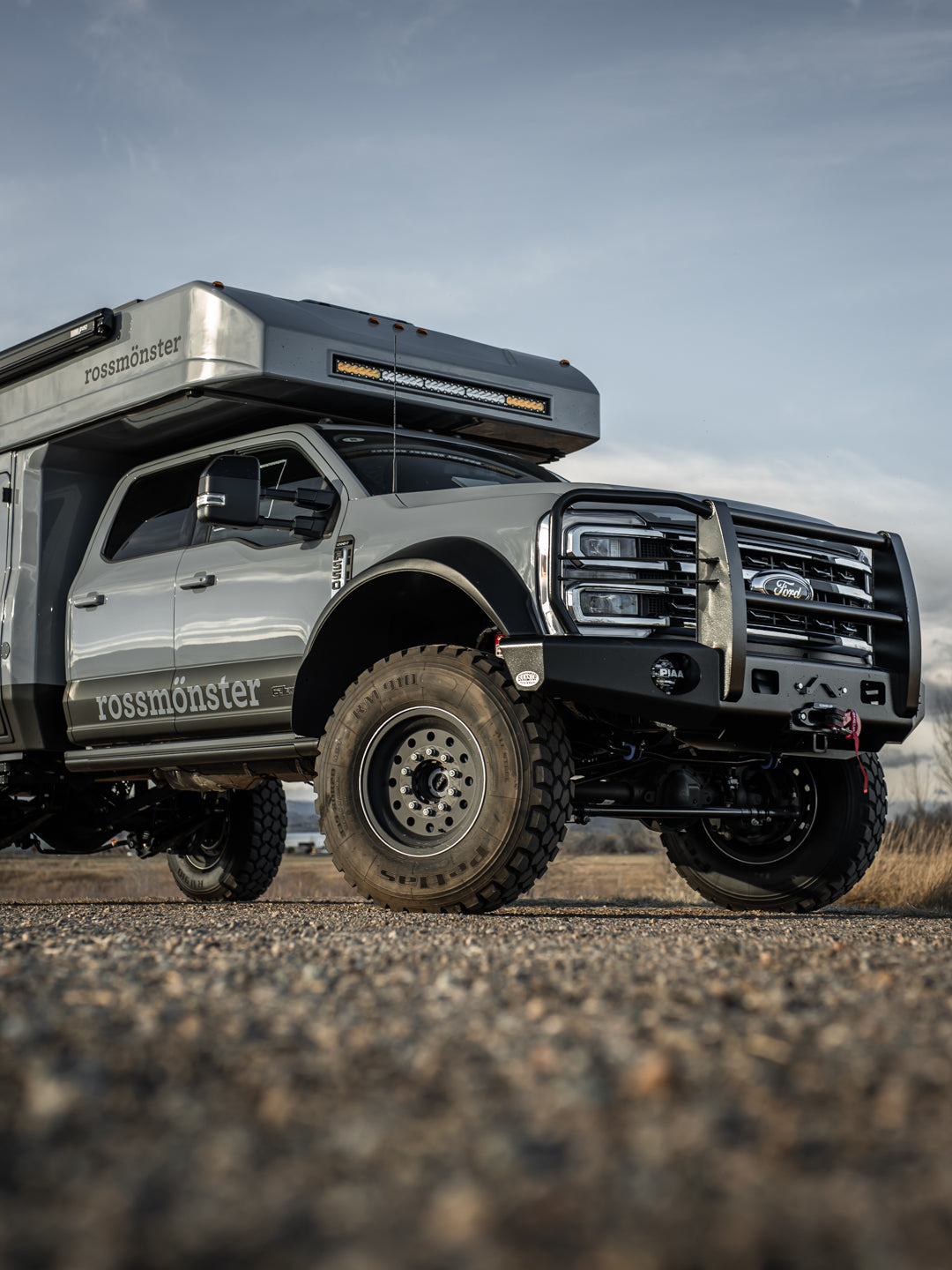

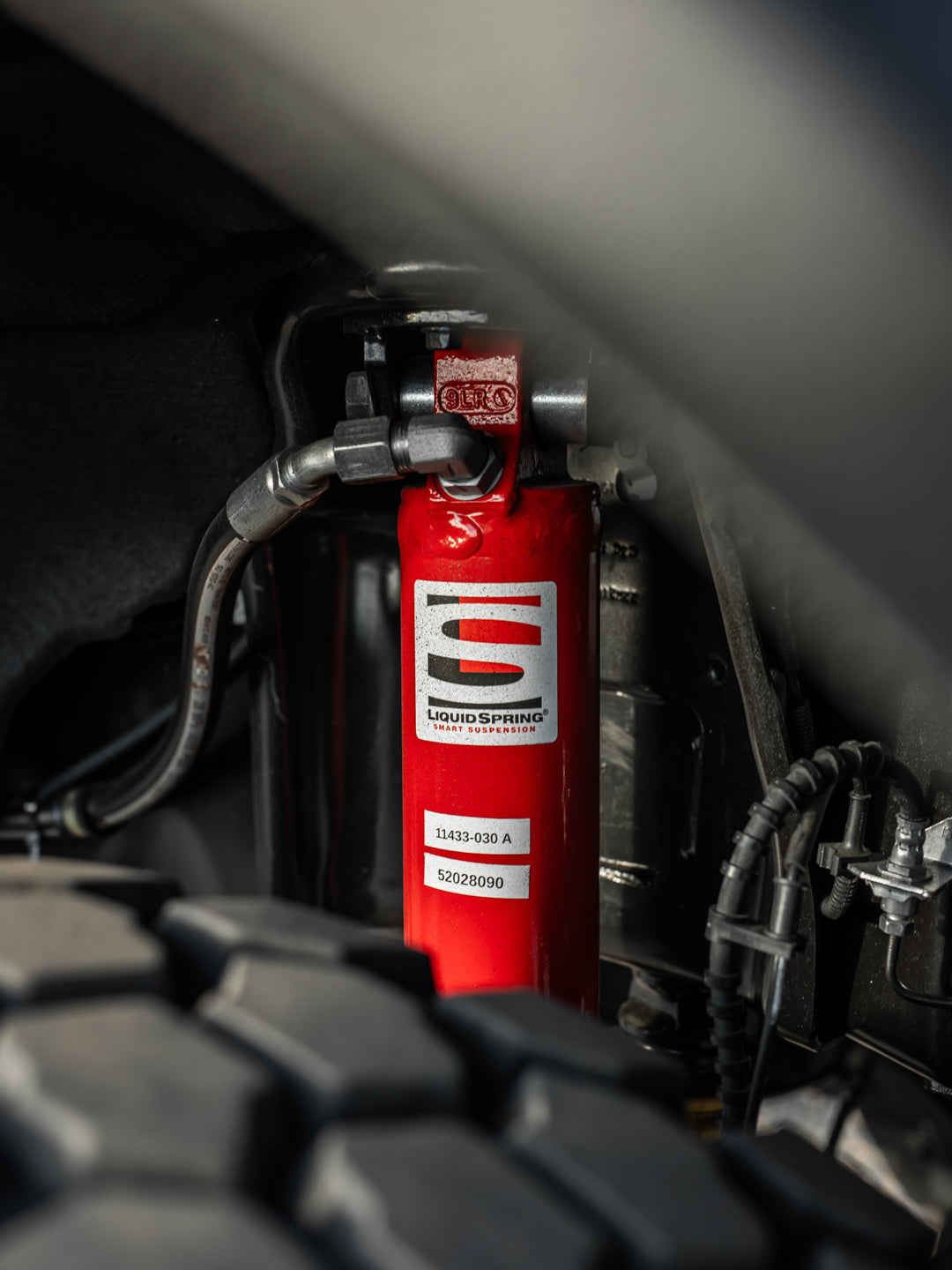

The LiquidSpring suspension, paired with rugged HD wheels and 41" tires, is the top-of-the-line combination for a rig this size.
At 14,400 lbs GVWR the Plus is one of the lightest in its heavy-duty class, which lets LiquidSpring perform at its peak.

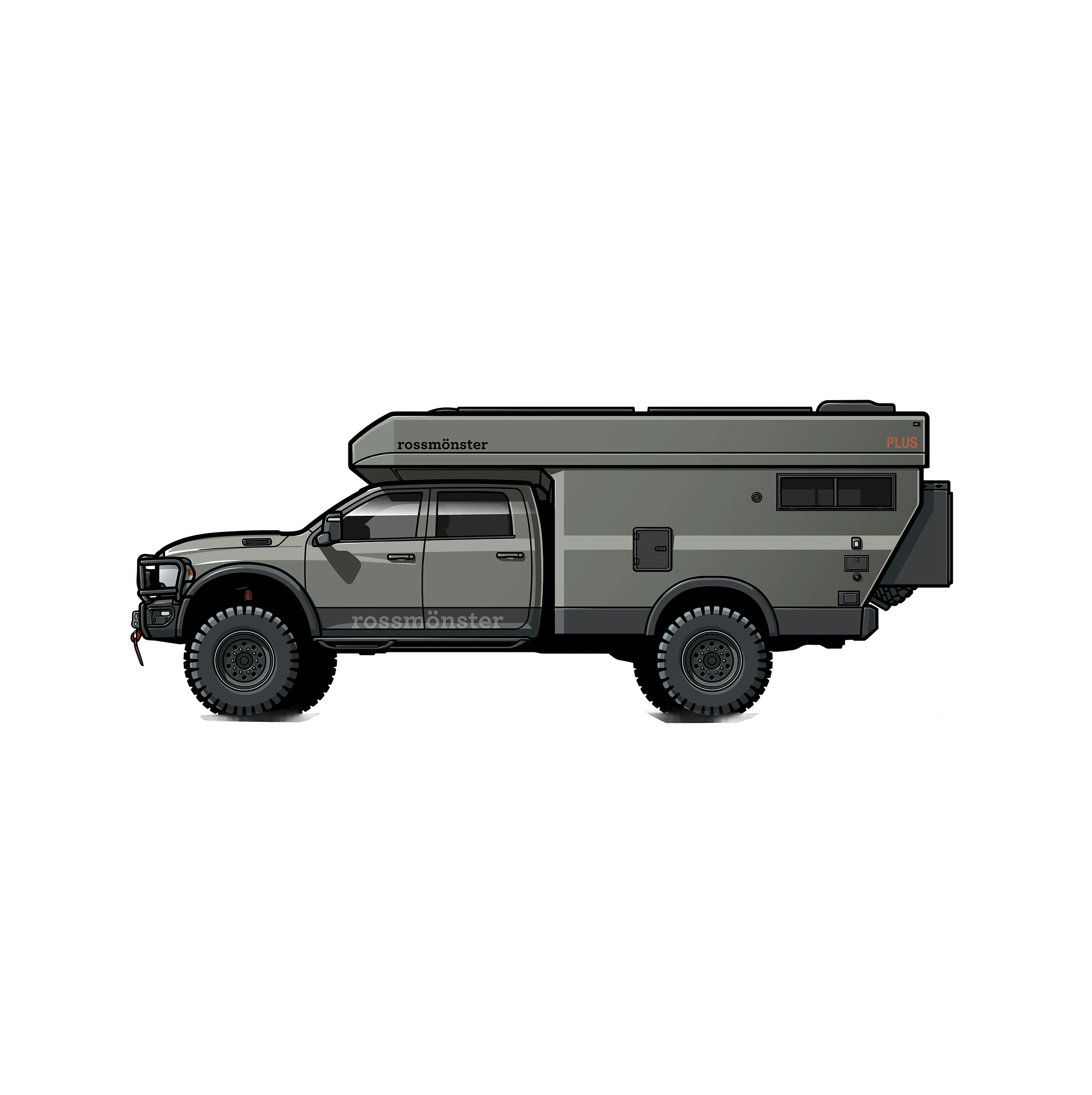

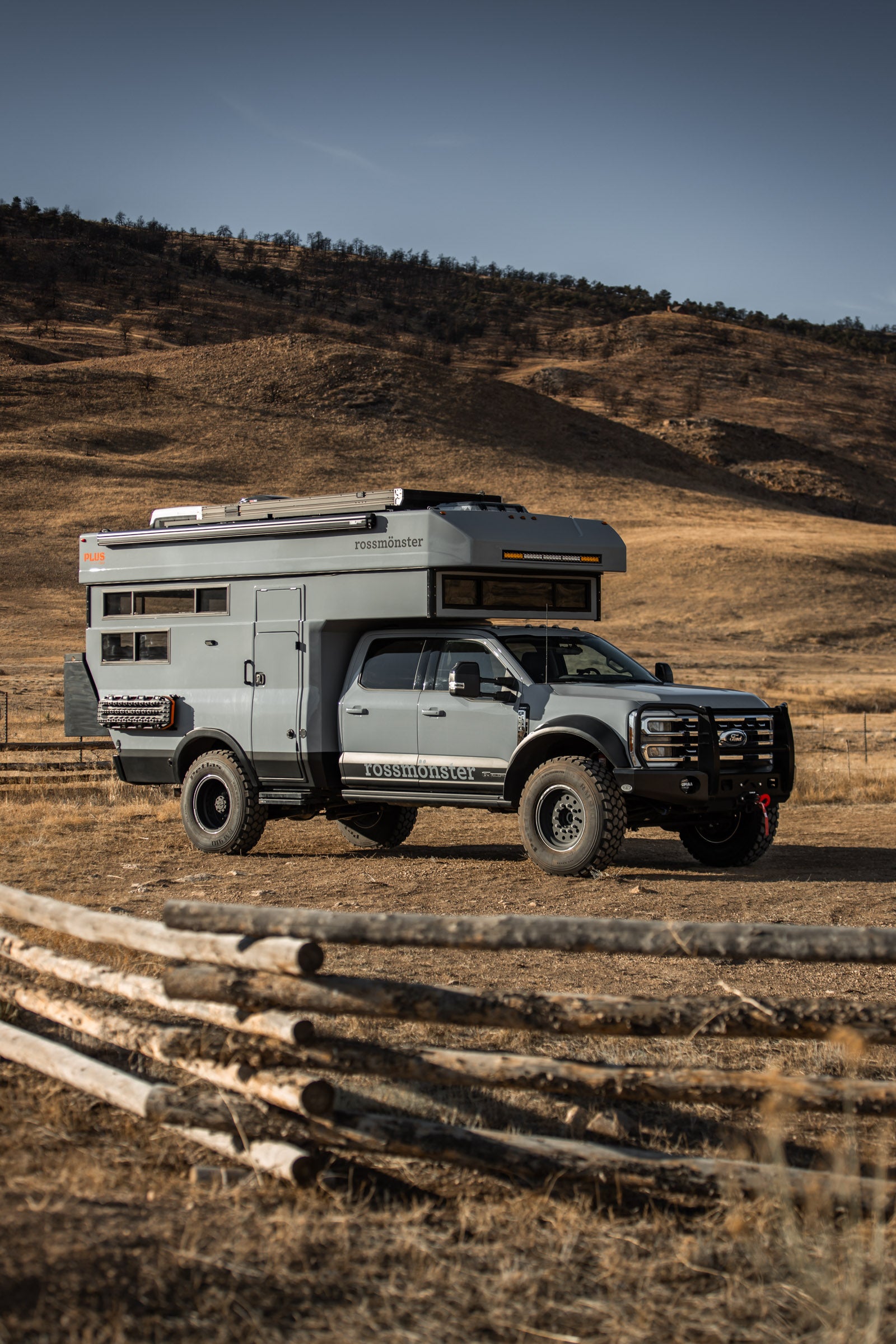

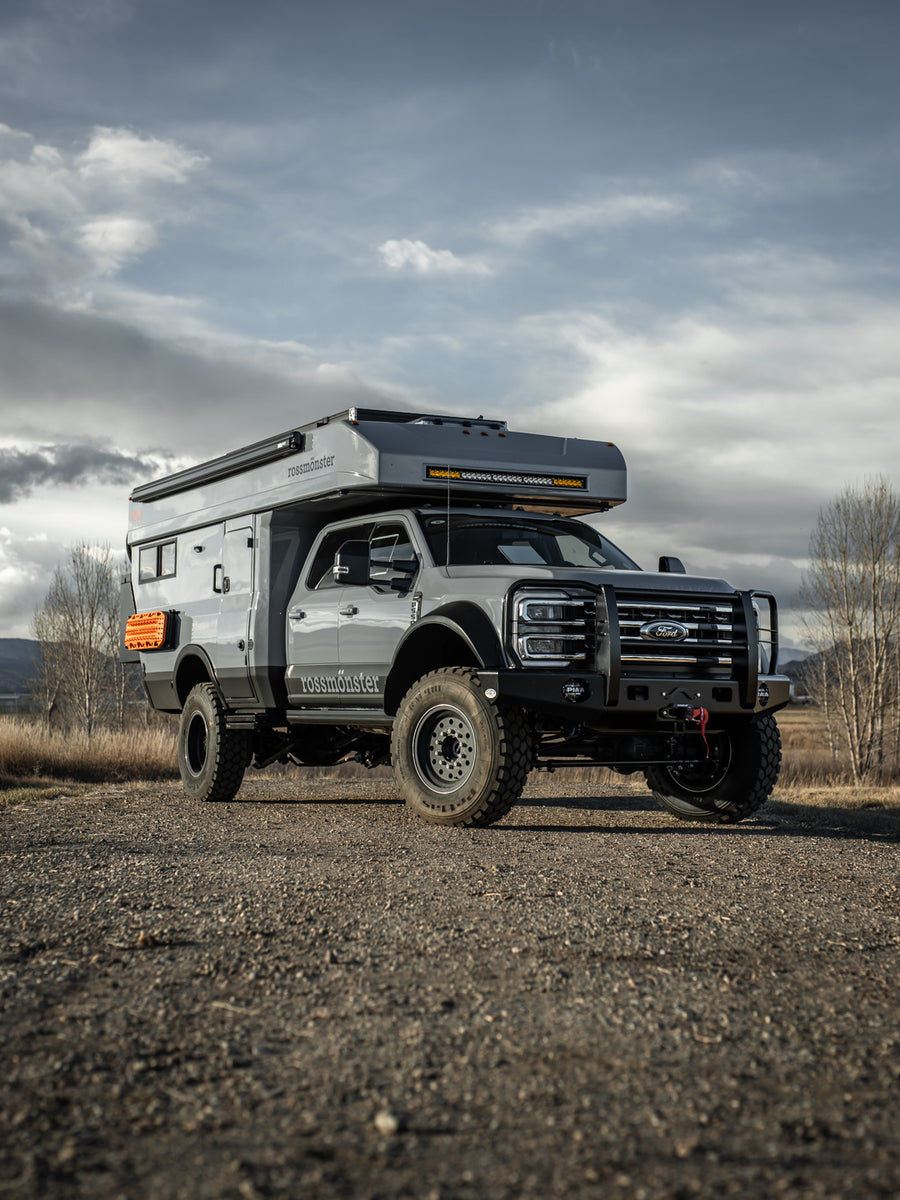

10' 3" at driving height
Paired with Method HD wheels and five 335/80R20s, the Plus carries serious ground clearance and all-terrain stability while staying manageable on the road.

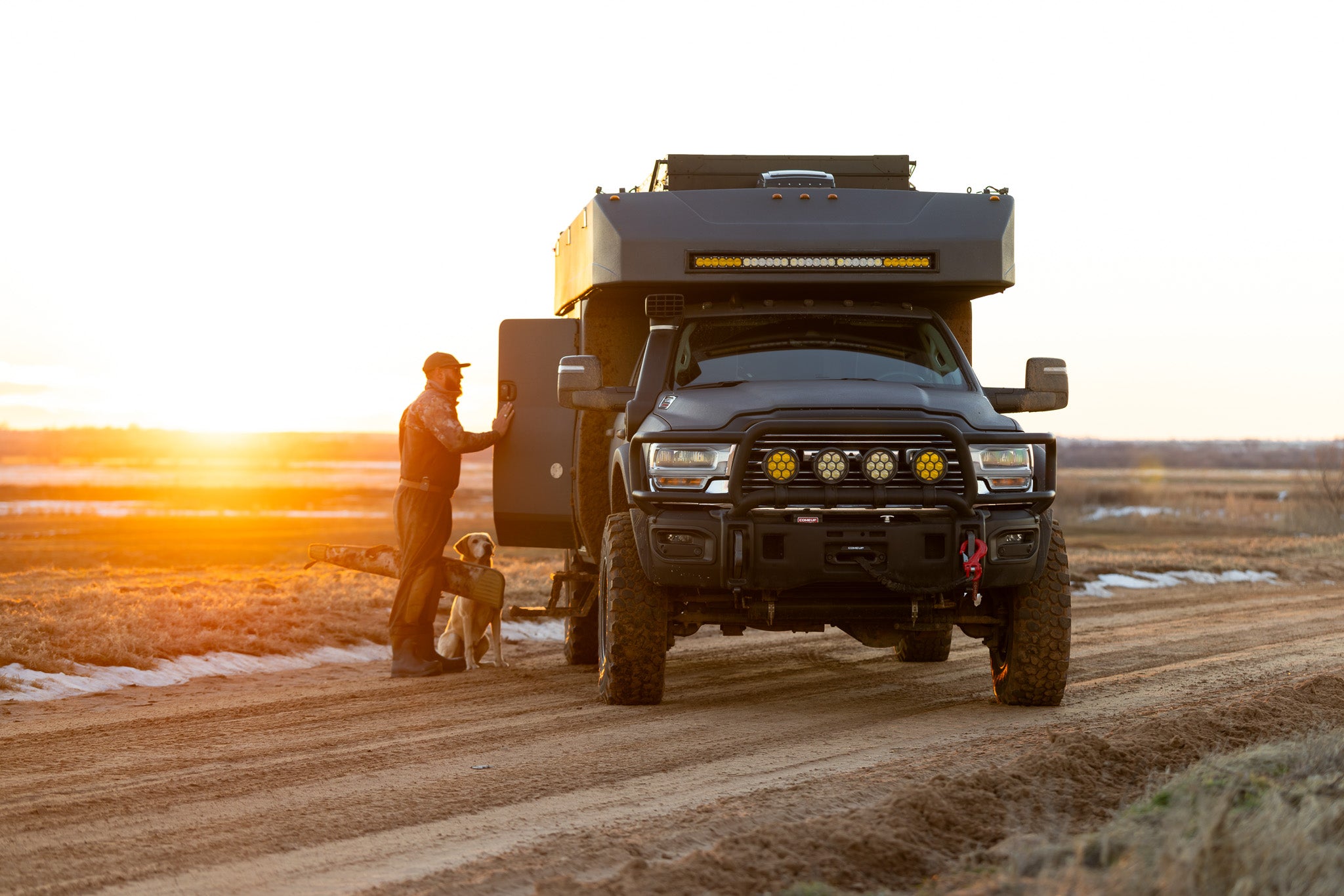

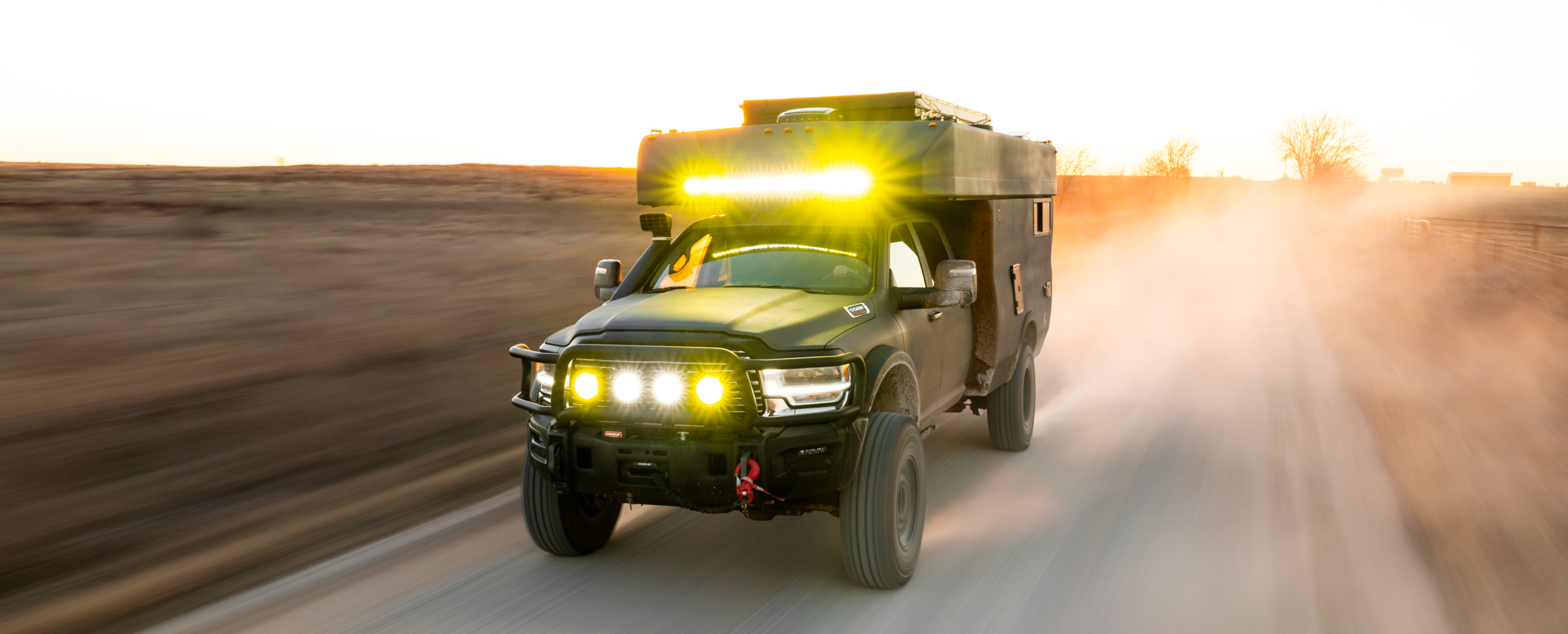

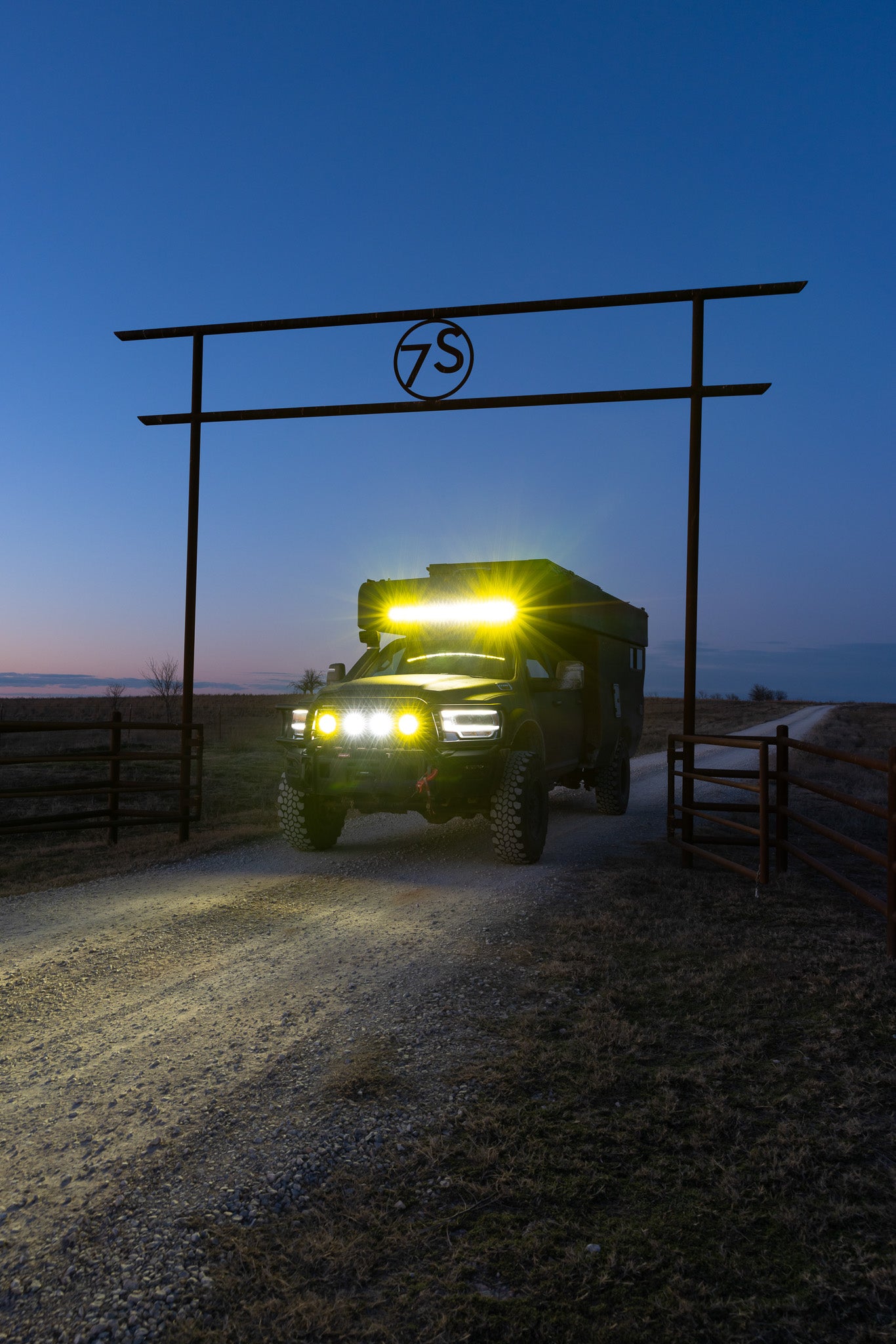

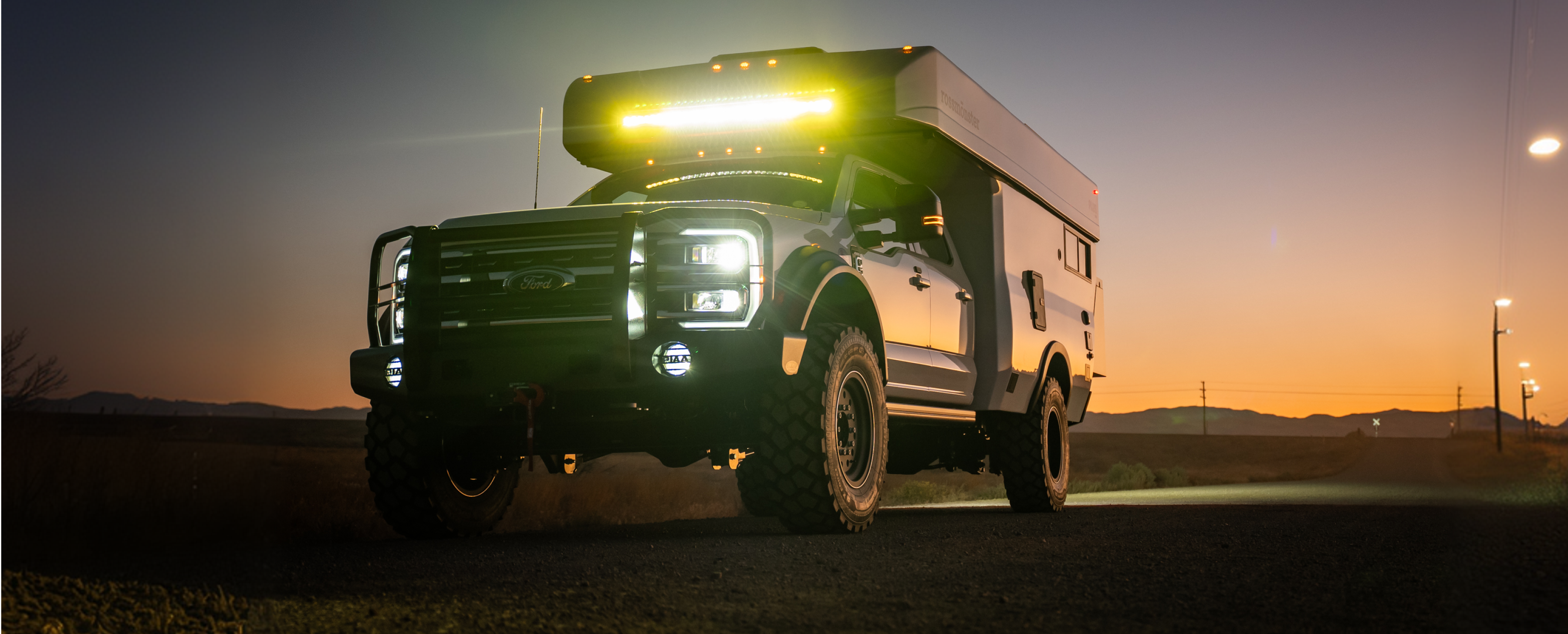

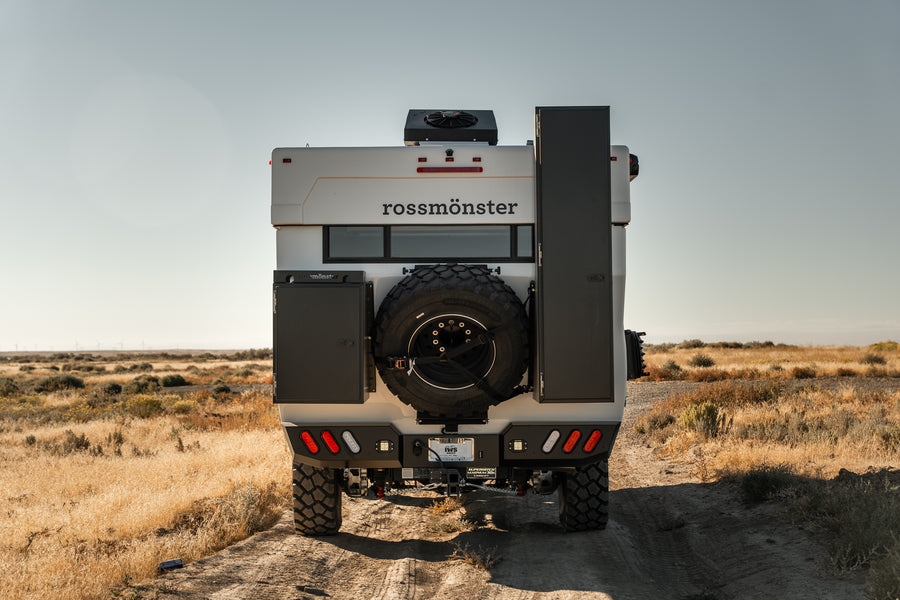

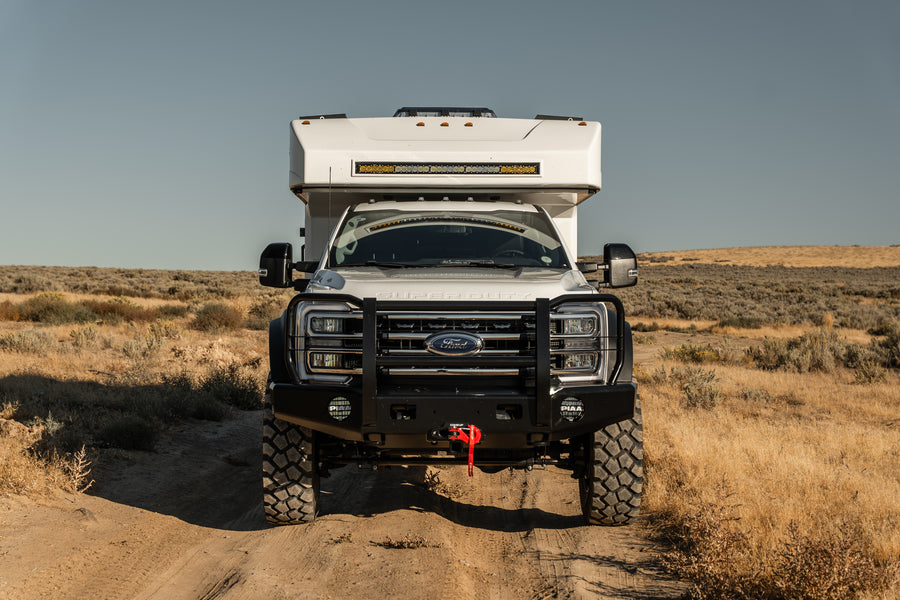

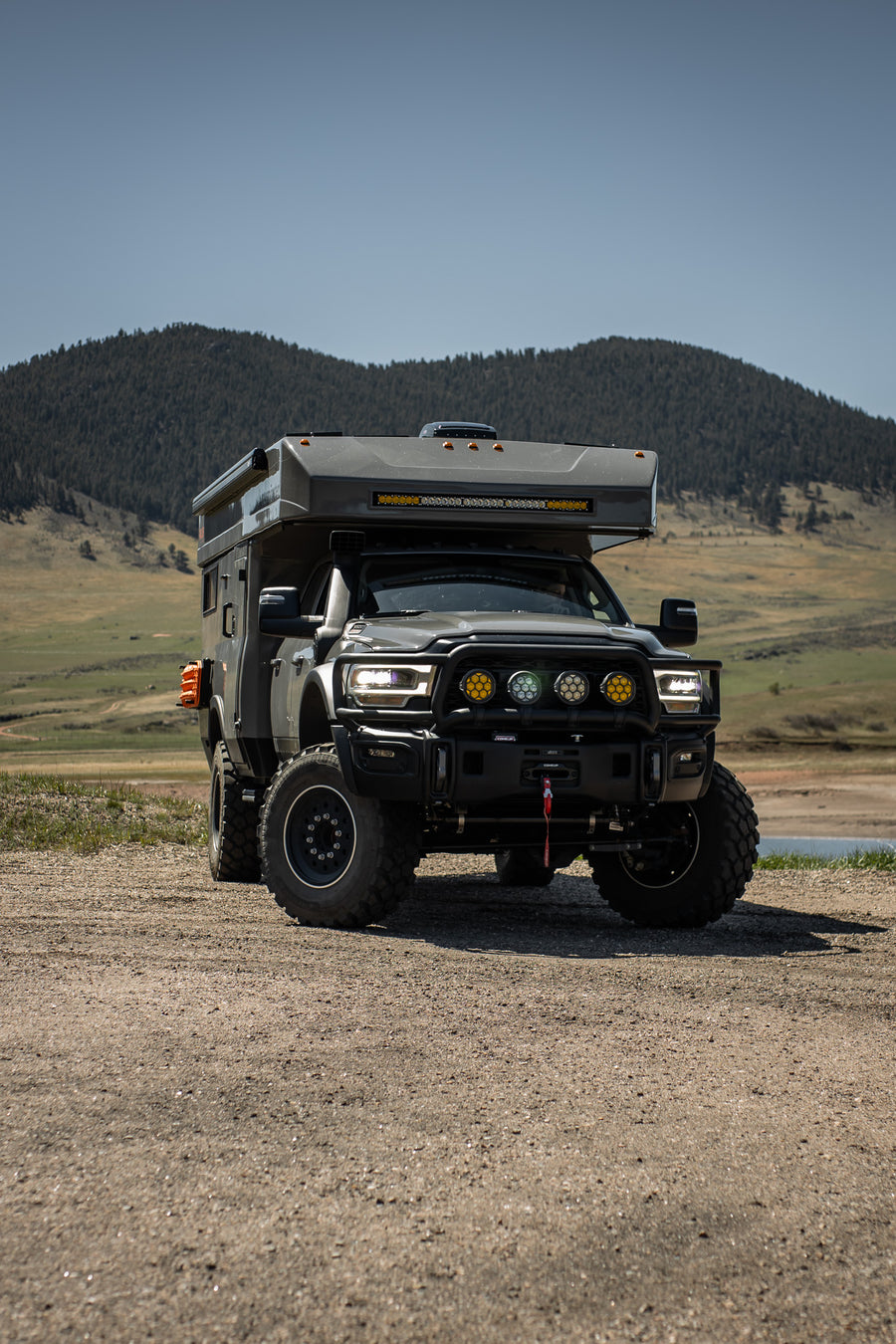

Bright as day, whenever you arrive

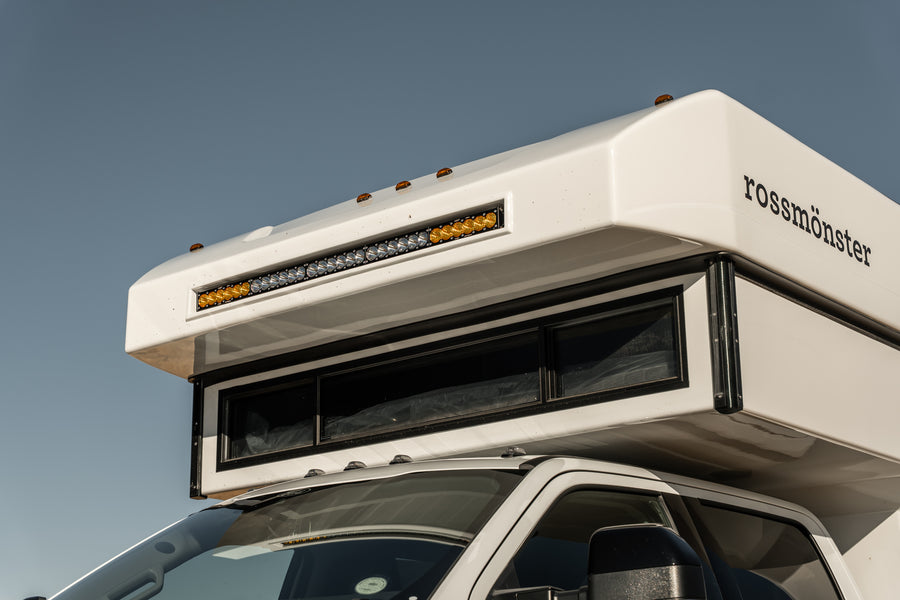

A 50" Baja Designs OnX6 light bar, bumper cube lights and a 20" bar keep the road and the camp lit no matter what time you roll in.
Explore the Baja Plus in media.
Follow our YouTube for build stories and trail footage from the Baja Plus, or dig into the back catalog for the engineering problems we have already worked through. Ross, Luke, Theo, and the whole crew, building and testing these things for real.
Luxury living quarters.

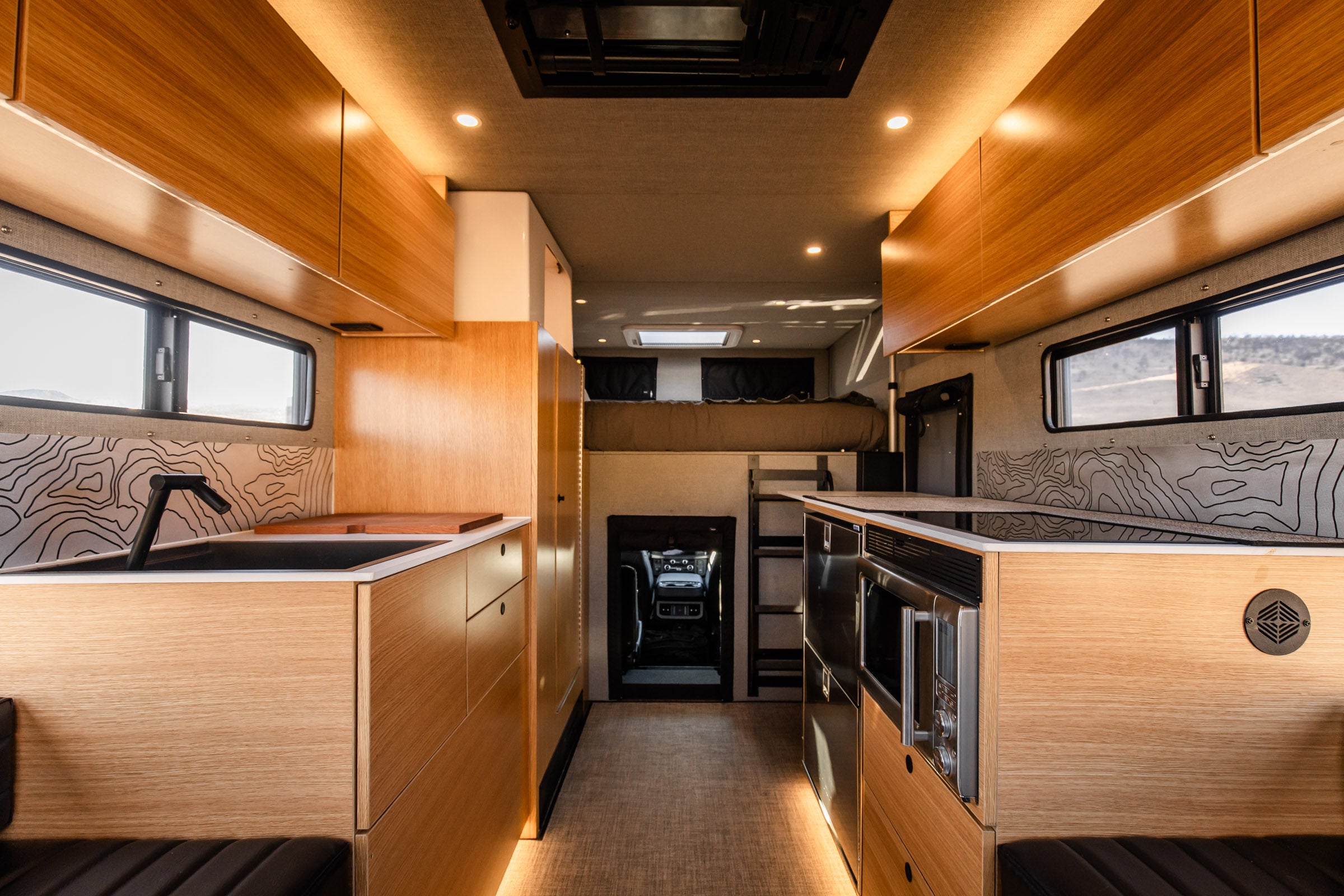

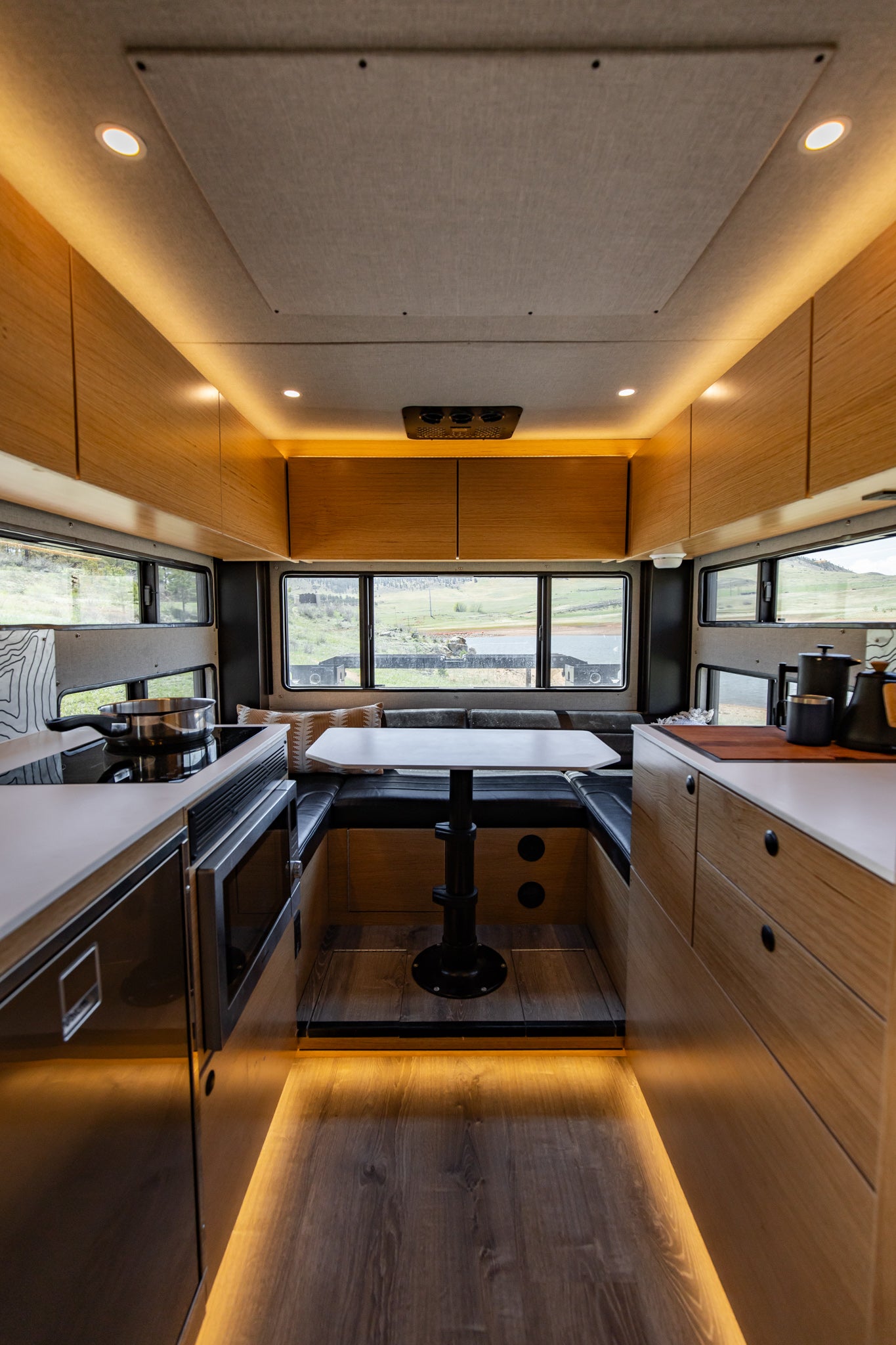

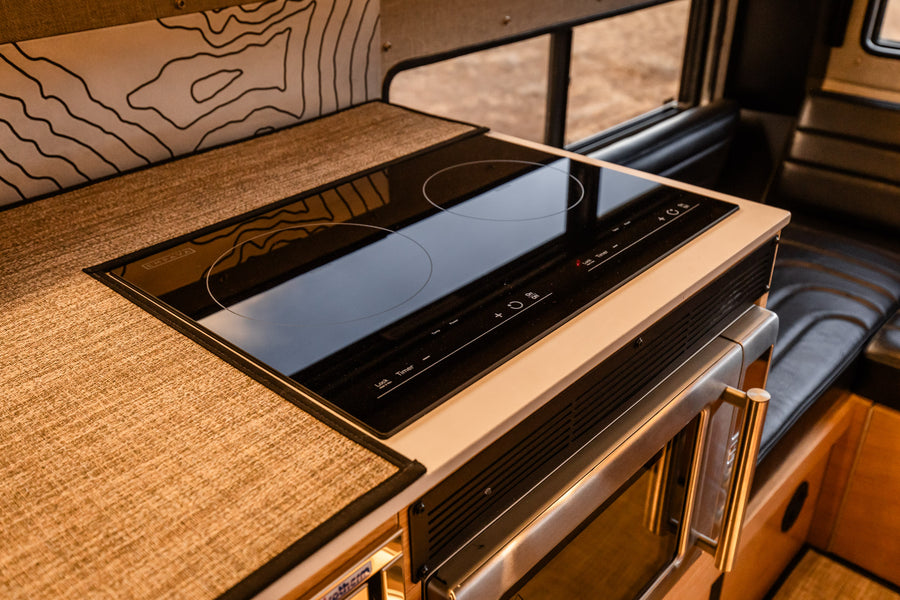

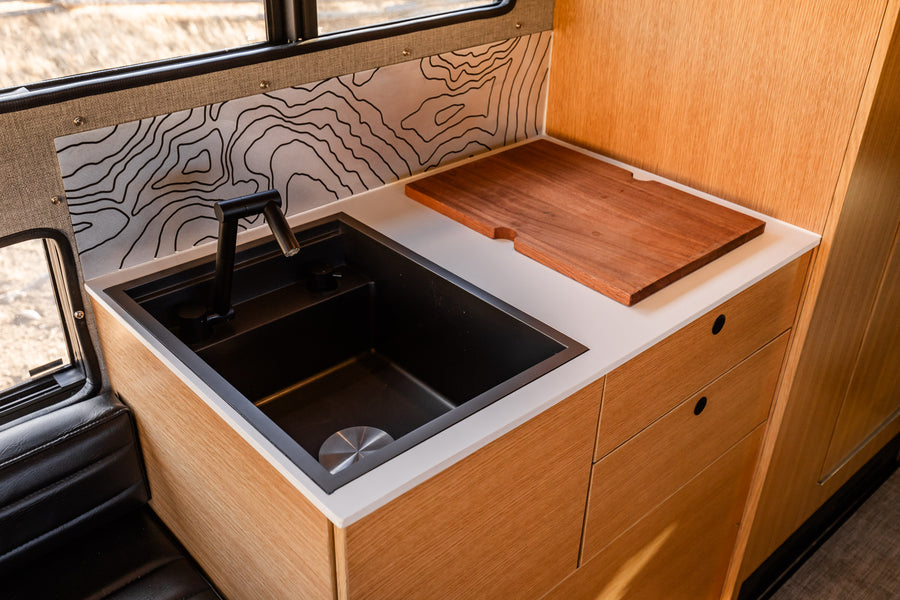

A galley you can actually cook in
Breville microwave, air fryer and oven combo, a two-burner induction cooktop, a 4.5 cu ft fridge and freezer, and a 16" x 20" sink with a folding faucet and cutting-board top.
The 35" aisle is ten inches wider than the Trail's, so two people can be in here at once.

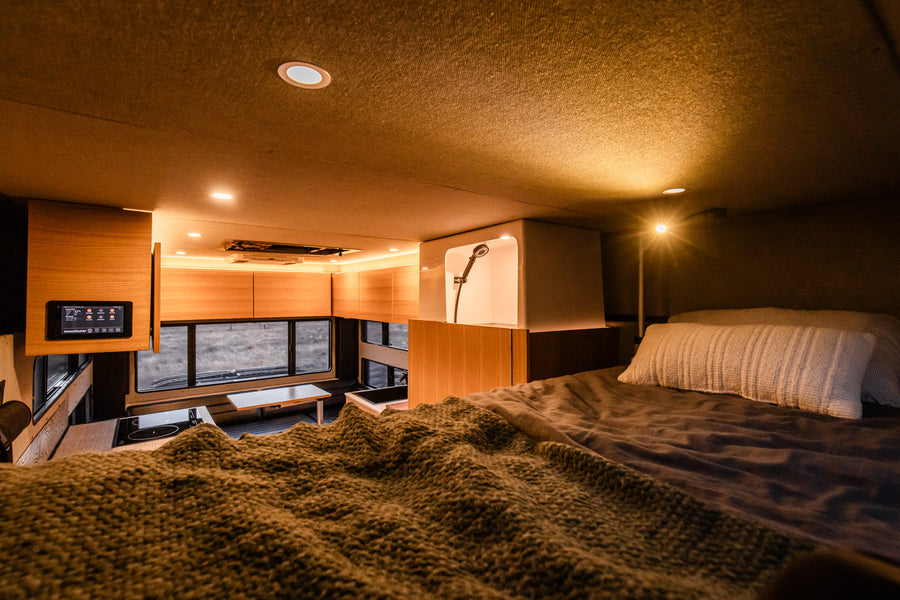

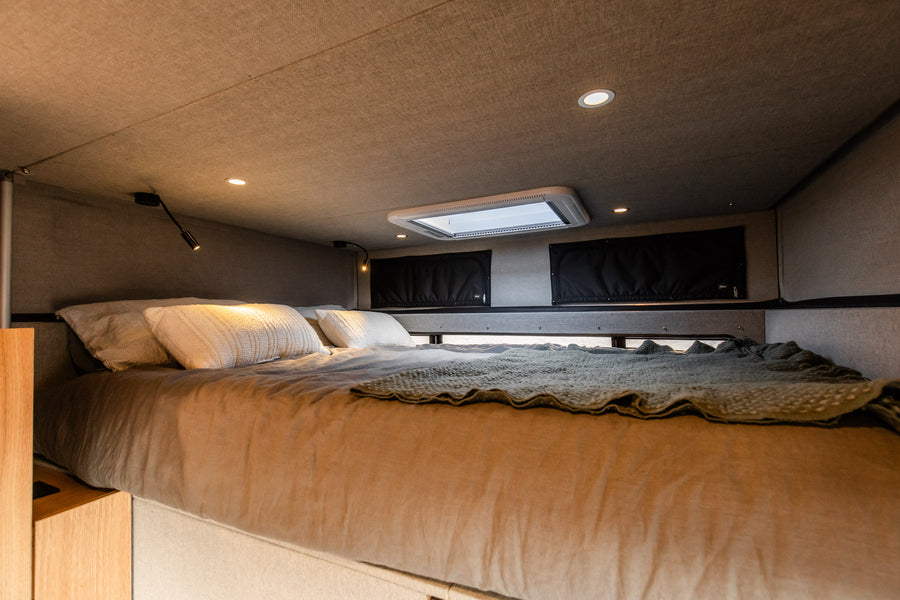

60" x 83" cabover
The cabover bed in the Plus is 60" by 83" and comfortably sleeps adults up to 6' 6". Convertible dining seats four to five and converts to a second full-size bed.

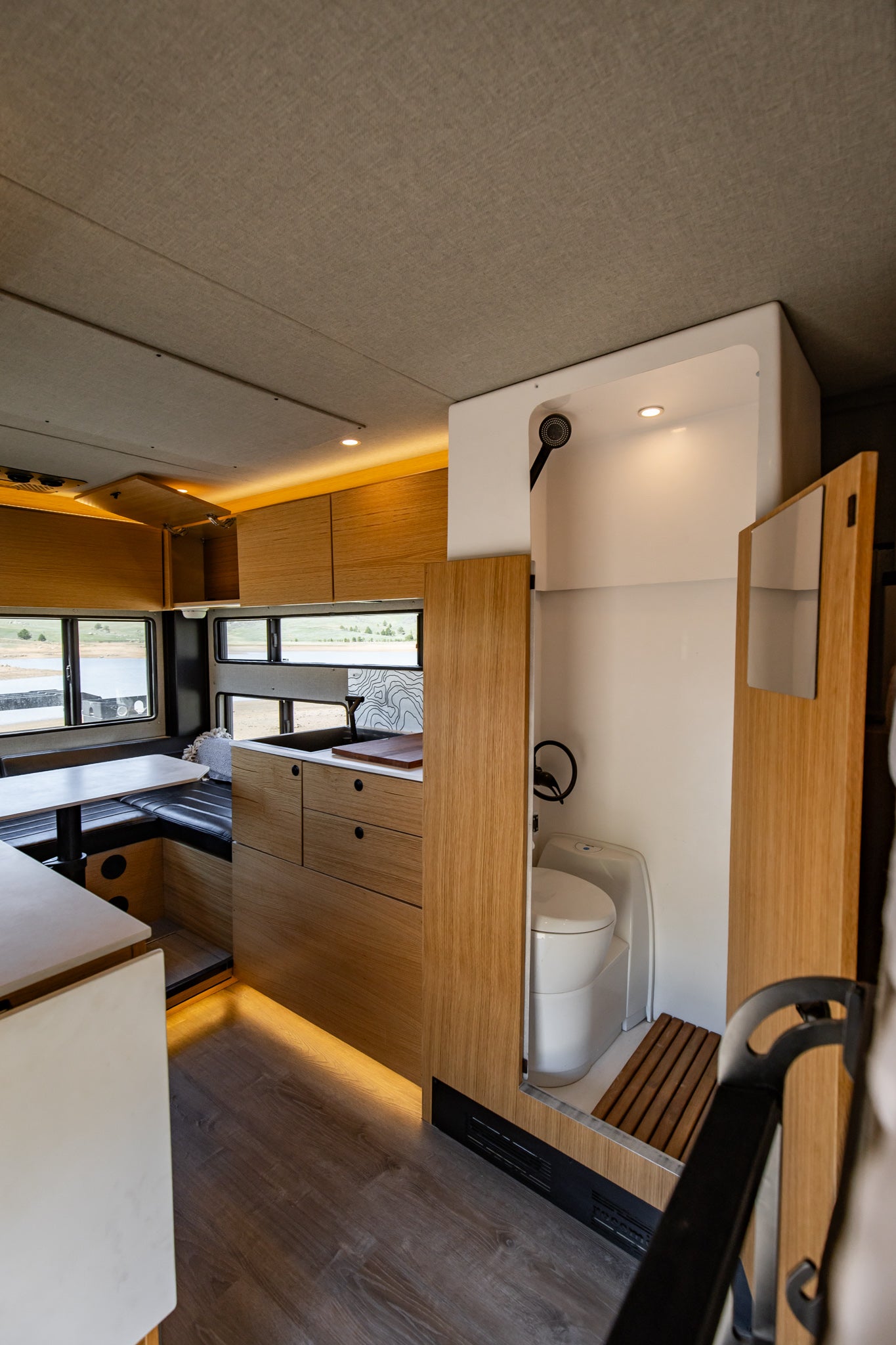

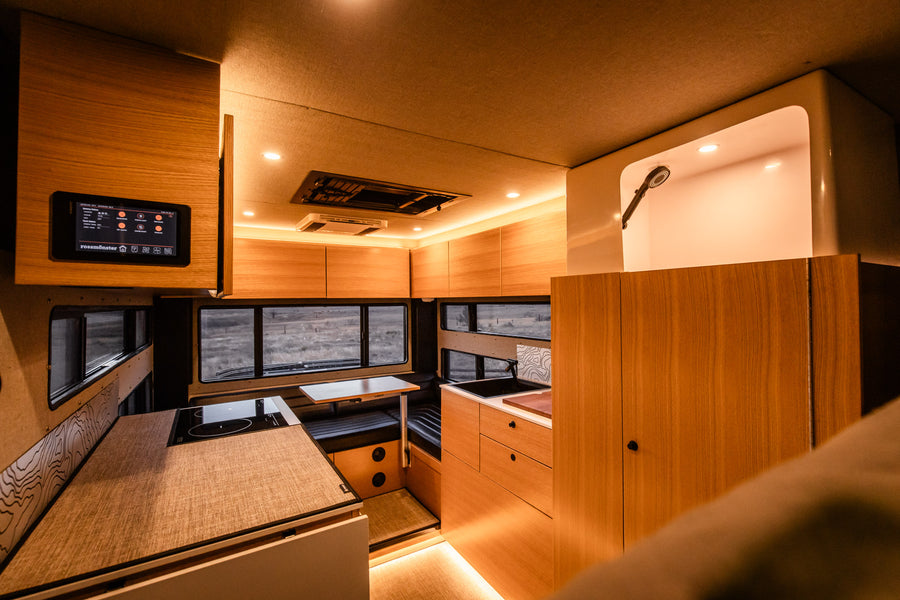

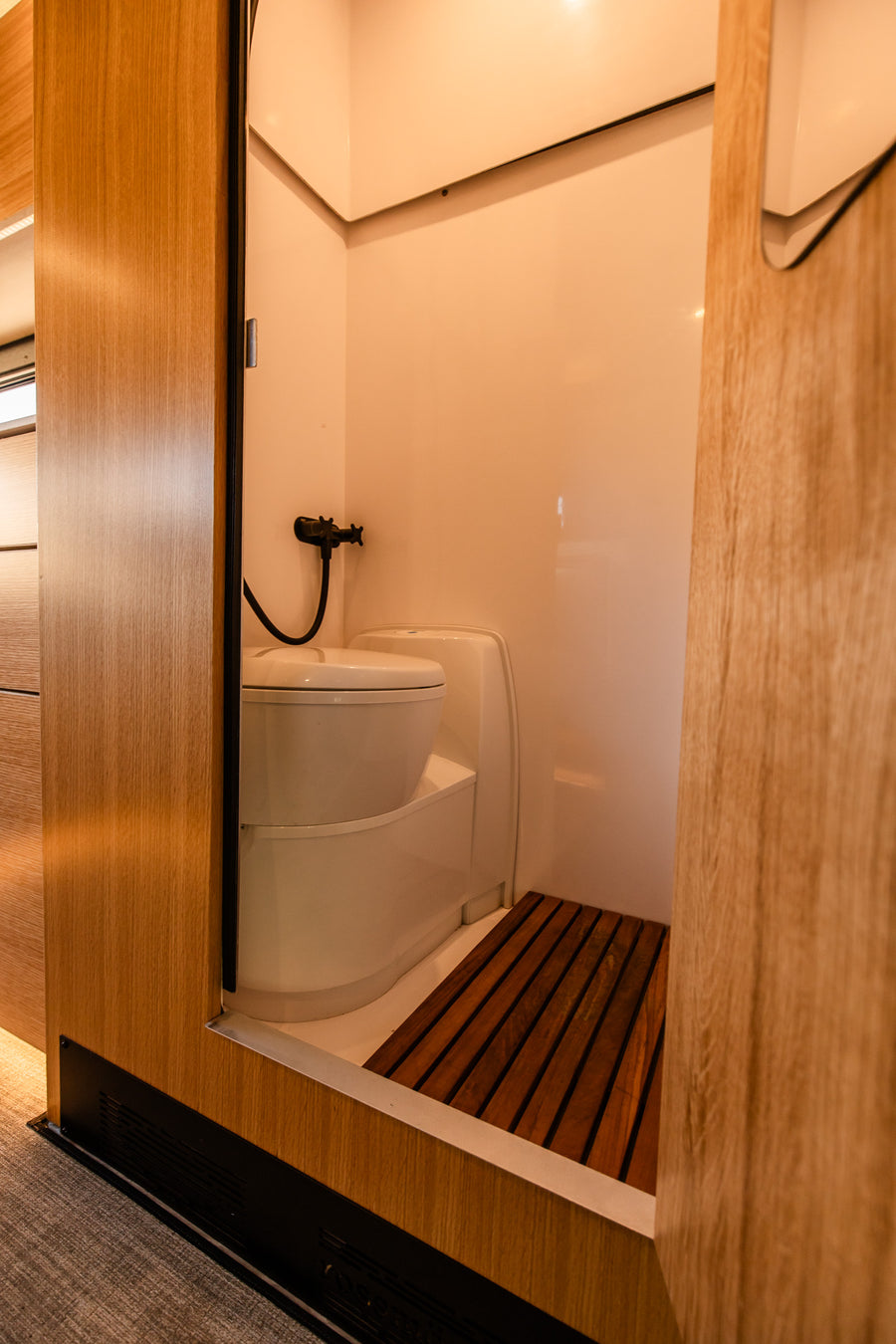

6' 2" of standing shower

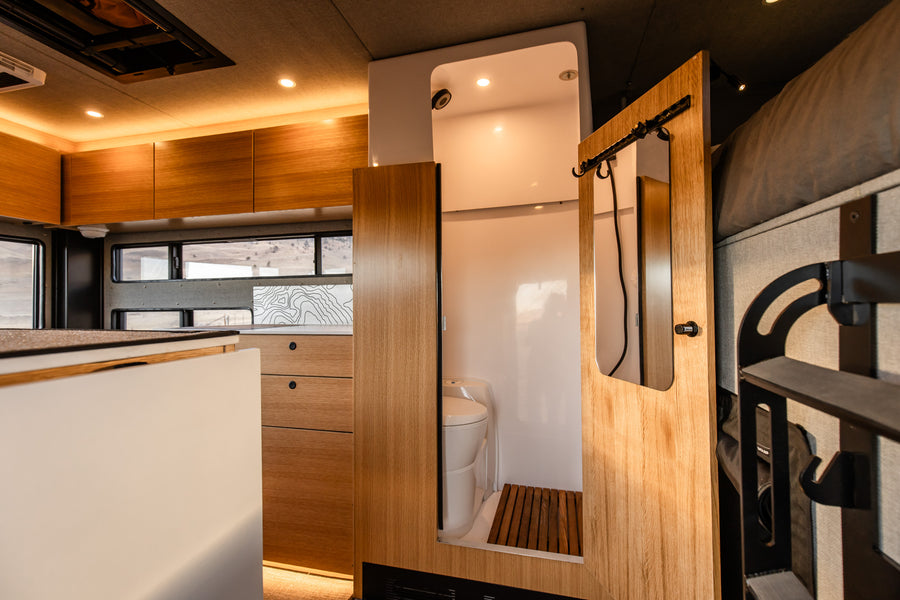

A spacious wet bath with recirculating shower options for endless hot water, plus smart moisture control and an exterior vent so it dries out between uses.

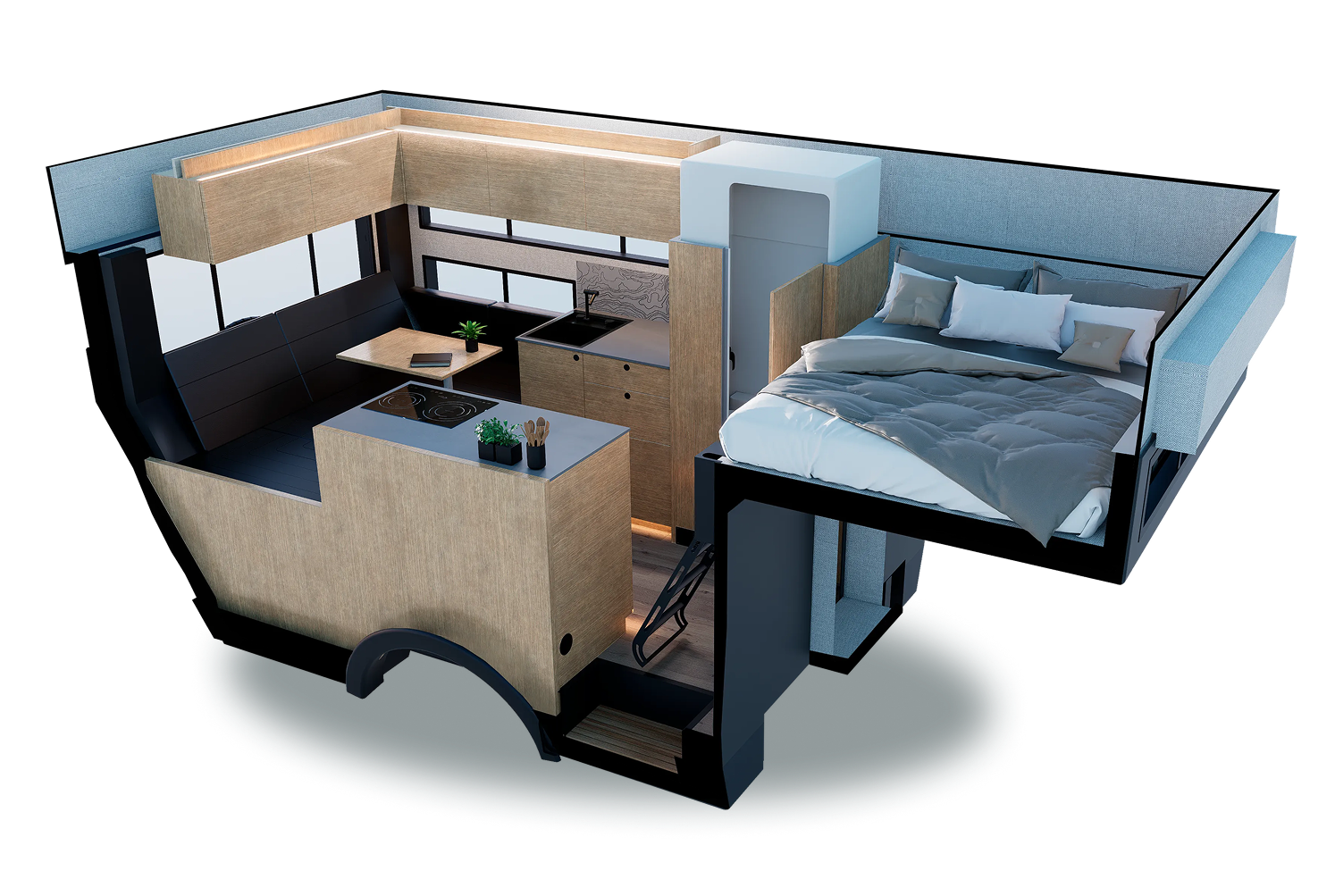

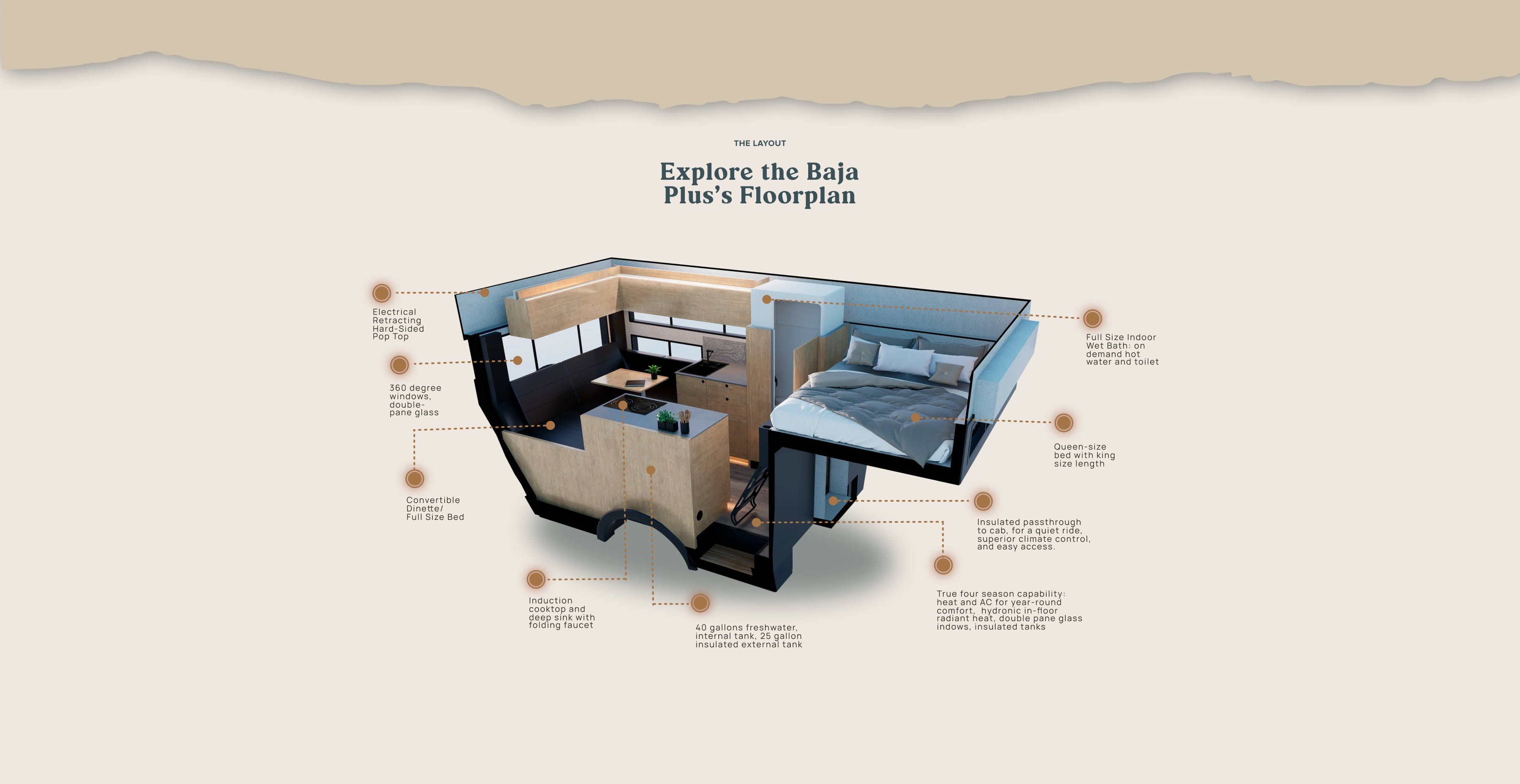

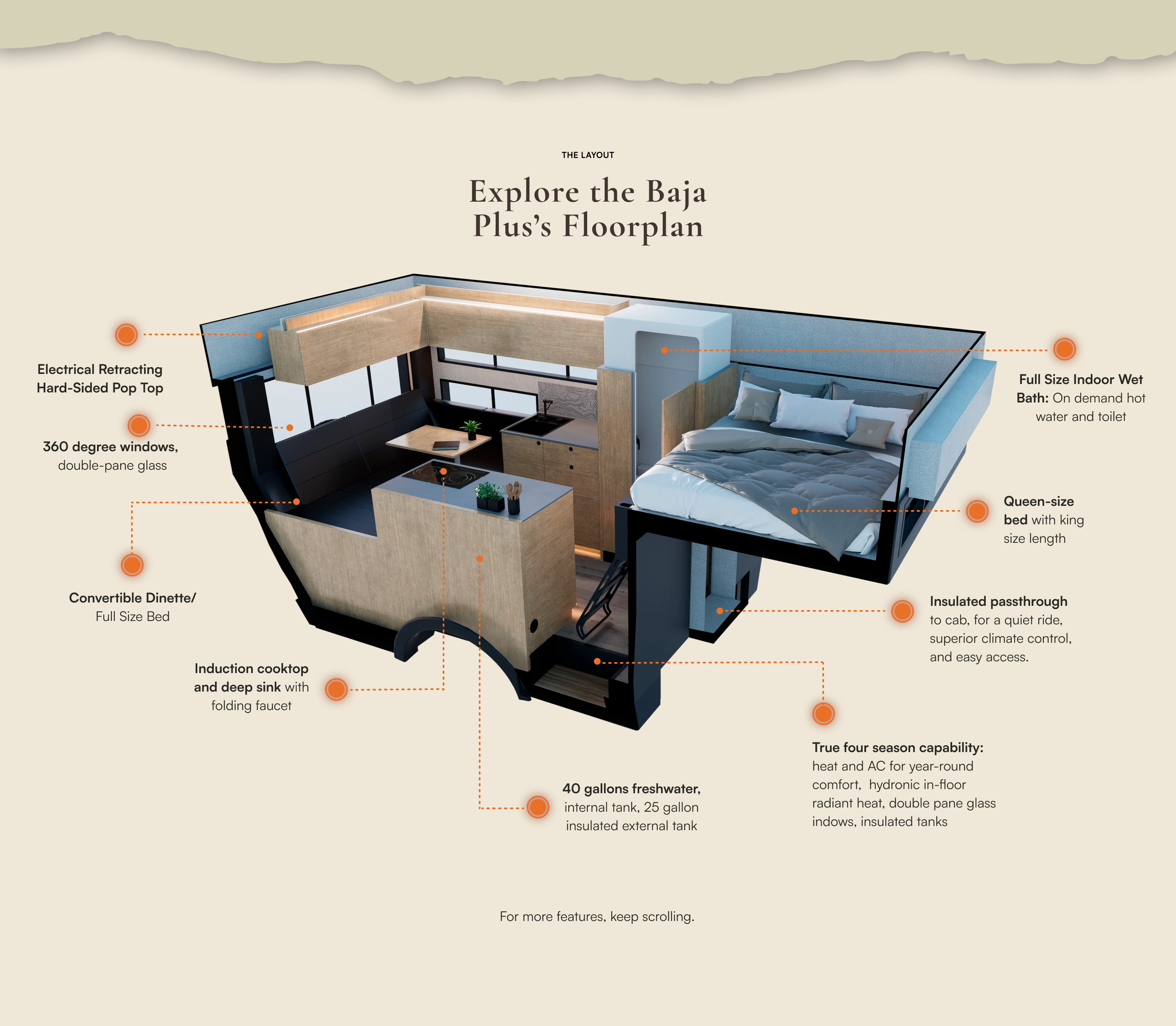

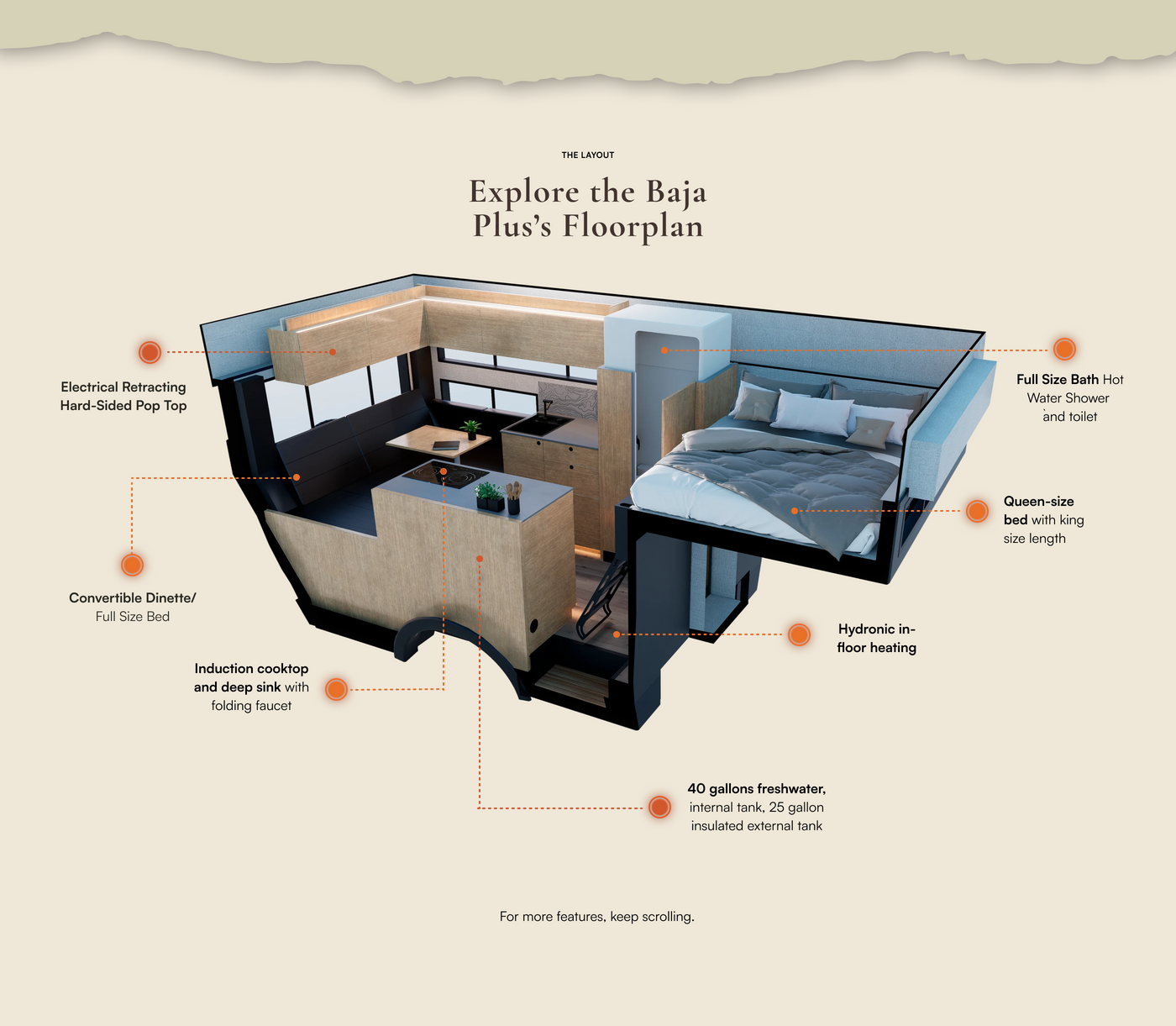

Explore the Baja Plus layout.
360-degree double-paned glass, an insulated passthrough to the cab, and a convertible dinette that sleeps two more. Click any photo to view it and scroll through the gallery.
Customize Your Own
Every Baja Plus leaves the shop trail-ready. From there it's yours to spec with our service team. The common options are below, but the real configuration conversation happens with a person, not a checkbox.
Wedge or Side-Entry Storage Box
Exterior storage, in the layout that matches how you load.
Ski Storage Box
Long, narrow and sealed, for the gear that will not go inside.
Skinny Storage Box
The low-profile option when you want the box without the bulk.
Rooftop Tent
A second sleeping area up top when the dinette is already taken.
Infinity Shower
Take all the time in the world with the re-circulating hot shower, on less than a gallon of water.
HQ Pick-Up & Hand-Off
Meet the team who built the rig, plus all your questions answered on the spot.
2027 Baja Plus Specs
Here is how the Baja Plus measures up.
Vehicle

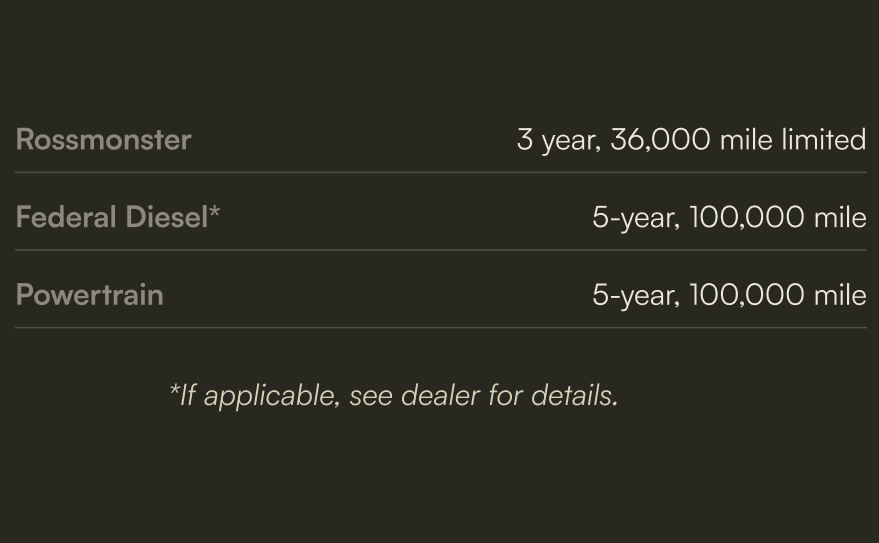

Warranty
- 3 year / 36,000 mile Rossmönster Limited Warranty
- 5 year / 100,000 mile Federal Diesel*
- 5 year / 100,000 mile Powertrain warranty
- *If applicable, see dealer for details.
Baja Plus Layout

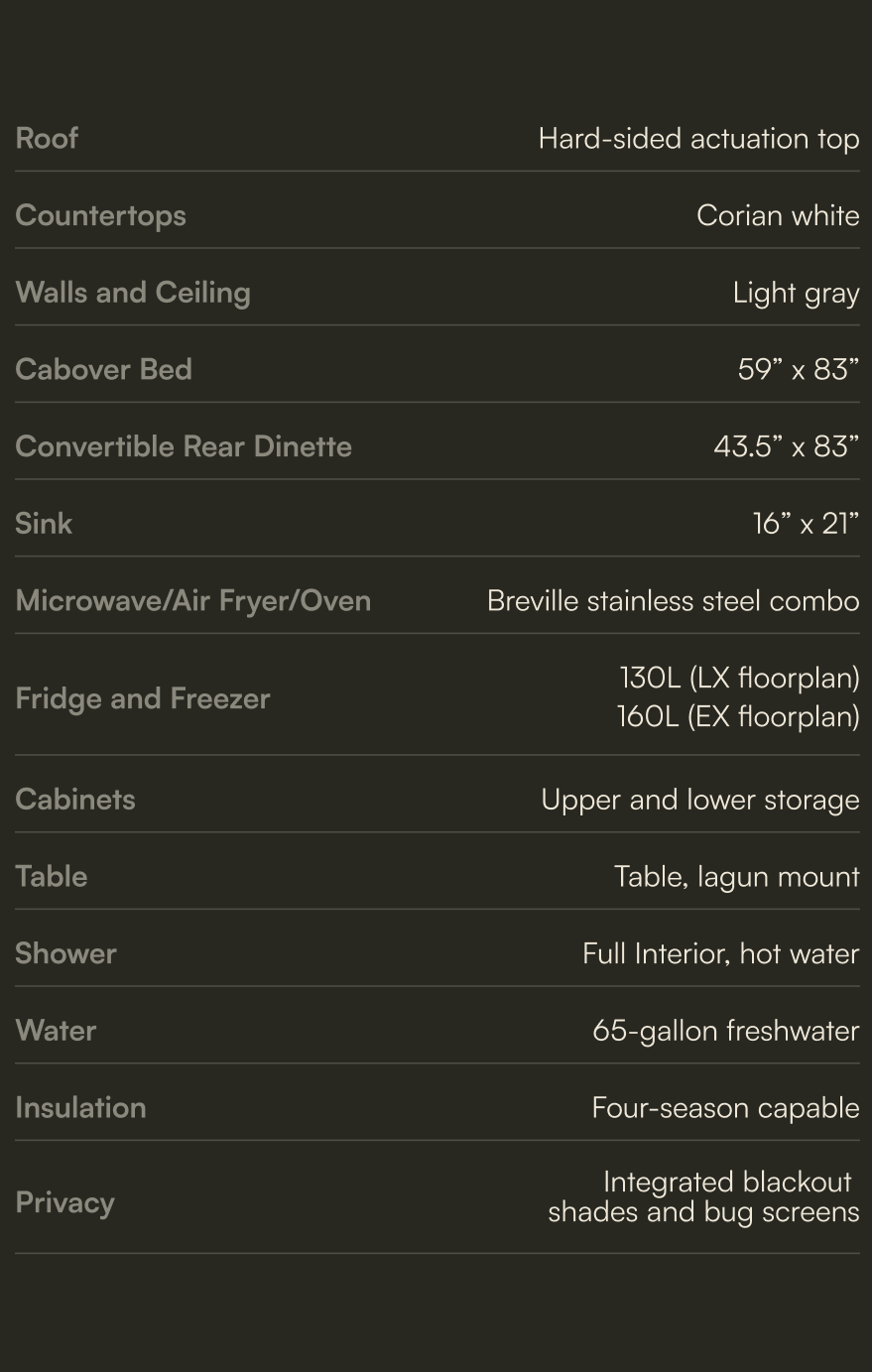

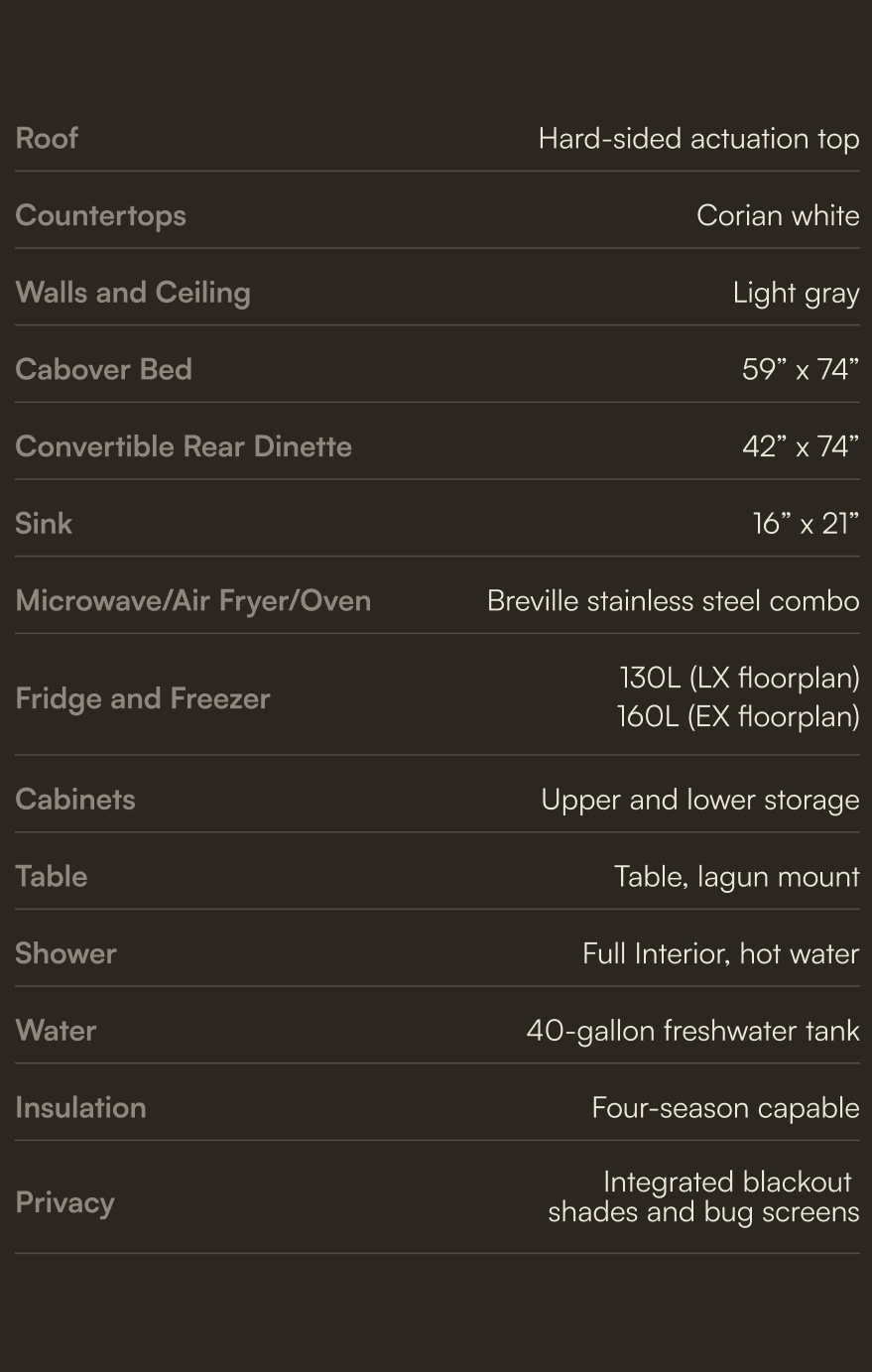

Interior
- Hard-sided actuating top
- Upper and lower wood cabinets
- Four-season insulation
- Table with Lagun mount
- 110V and 12V outlets
- Hydronic in-floor radiant heat system
- Integrated blackout shades and bug screens
- Eberspächer Breezonic Performance Plus HP air conditioning
- Exhaust fan
- Smoke and CO2 detector
- Fire extinguisher
- Insulated passthrough to cab
- 360-degree double-paned glass
Kitchen
- Corian white countertops
- 16" x 21" sink with folding faucet
- 130L / 160L refrigerator and freezer (EX or LX floorplan)
- Breville stainless steel microwave / air fryer / oven combo
- Two-burner induction cooktop
- Upper and lower cabinet storage
- 35" aisle, 10" wider than the Trail
Bedroom
- 60" x 83" cabover bed
- 6" plush Tochta mattress
- 31" headroom in cabover bed, top lifted
- Bedside charging ports and lights
- Hidden upper storage
- Windows across front with blackout shades
Living Room
- 43.5" long x 83" deep convertible rear dinette to second bed
- 26" x 19" dinette table with Lagun mounting system
- 78" interior standing height top lifted, 62" top lowered
- 24" x 36" insulated cab pass-through
- 108 sq ft interior floor space
- 560 cu ft total volume
- Dinette seats 4 to 5 adults
Bathroom
- Spacious wet bath, 6' 2"
- Full interior shower with hot water
- On-demand hot water
- Thetford cassette toilet
- Exterior shower
- Vented shower space
- Infinity recirculating shower option

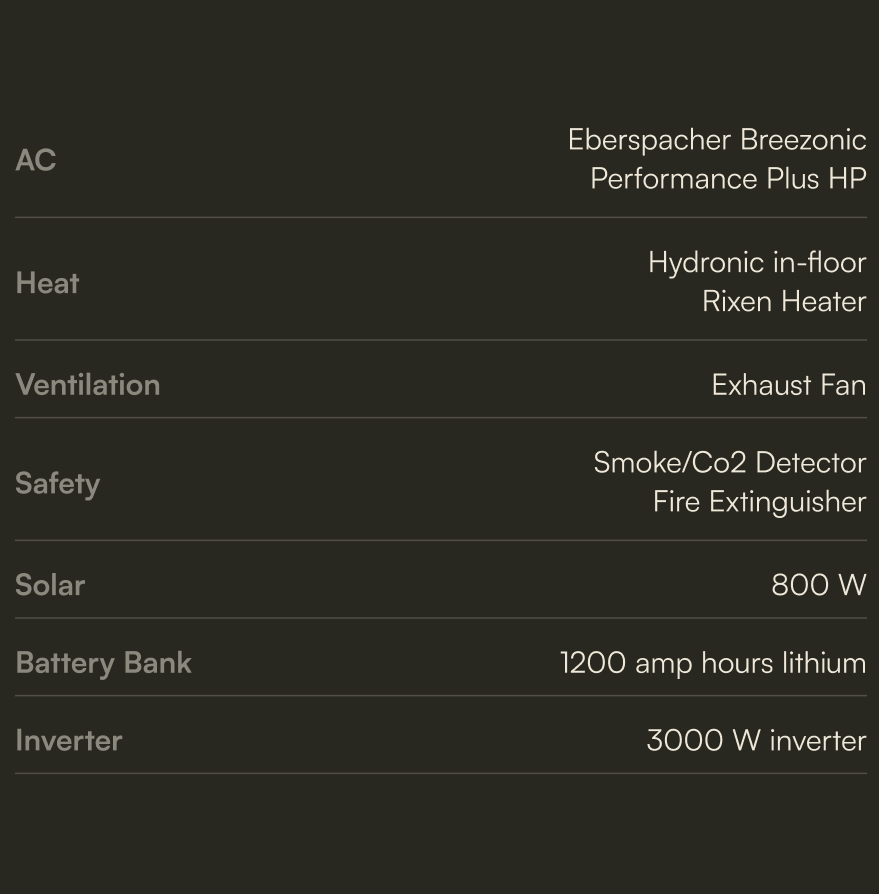

Energy System
- 1200 AH Lithionics iron phosphate battery bank

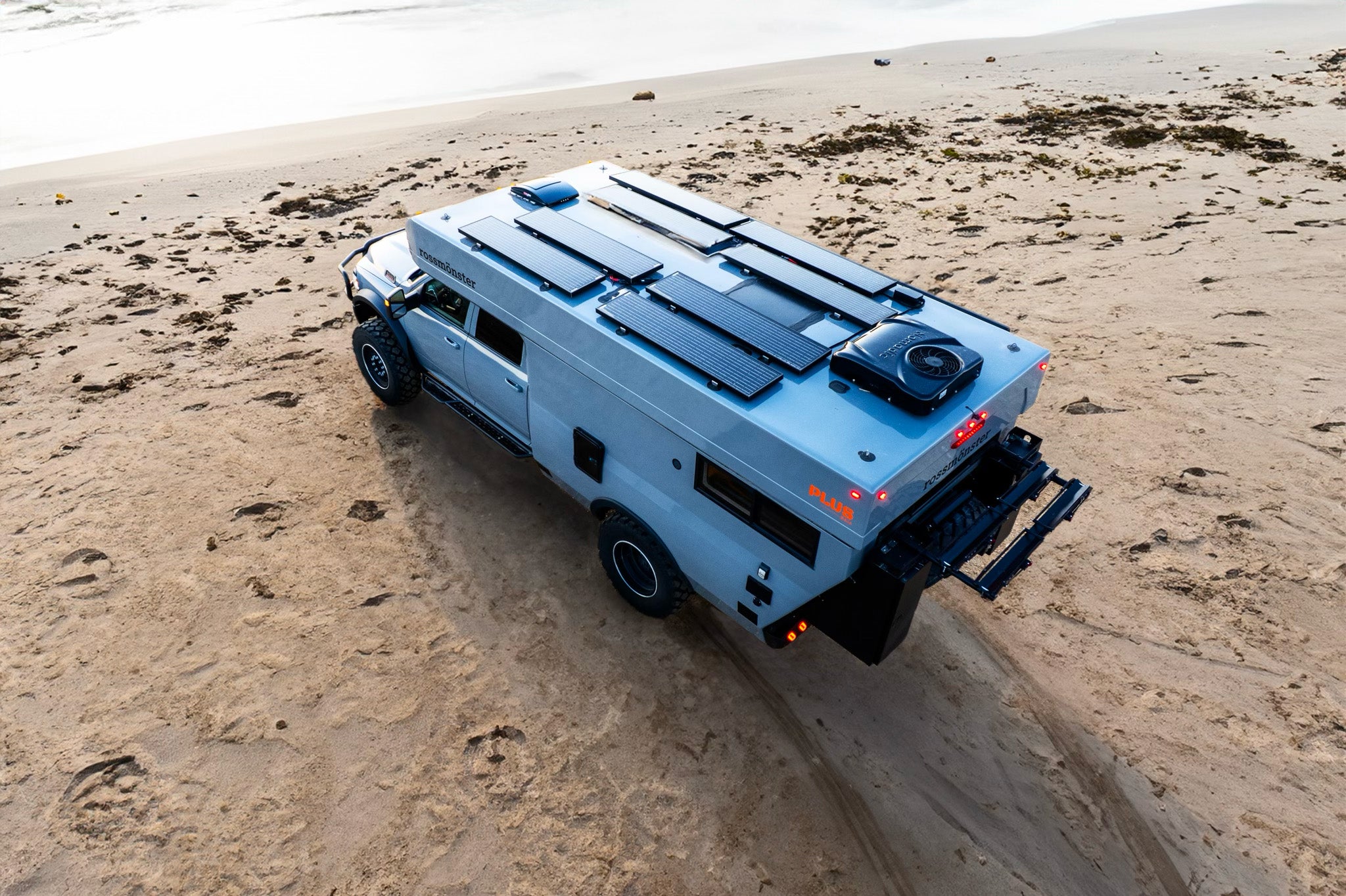

- 800 W roof-mounted solar array
- 3000 W inverter
- 110V AC electrical system
- High-output alternator charging
- Heavy duty shore power inlet

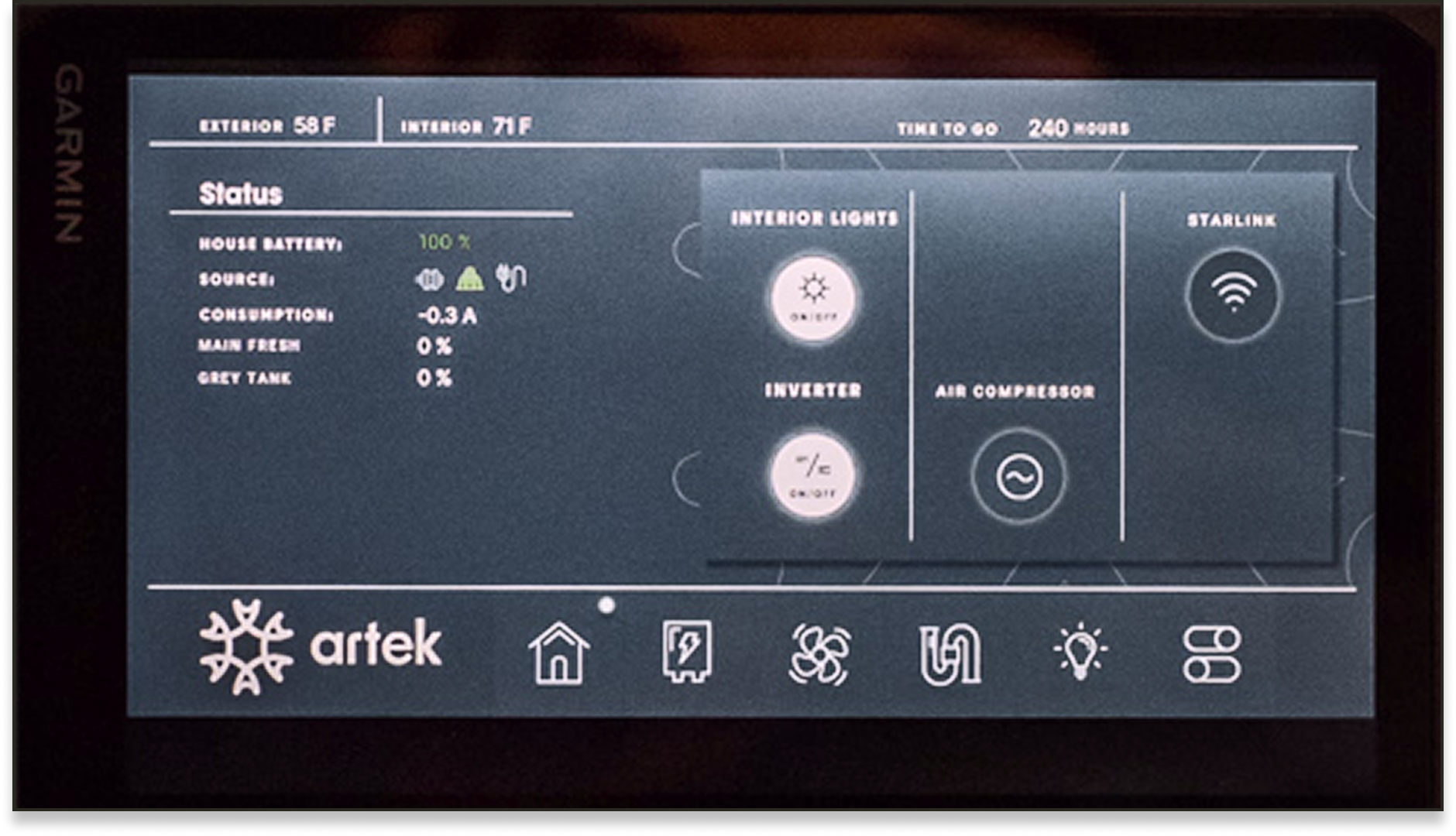

- Garmin digital control panel with remote viewing
- Starlink Mini wire prep
Water & Heater
- 65-gal freshwater (40 gal internal, 25 gal insulated external)
- 15-gallon grey water tank
- Fresh water connection exterior
- On-demand hot water system
- Exterior shower
- Diesel-fired Rixen heating system
- Hydronic in-floor radiant heat
Off-Road Systems
- Super single conversion
- 5 x 335/80R20 tires
- Method HD wheels
- LiquidSpring suspension system
- High clearance fenders
- AEV Ram front bumper with lighting upgrade
- 50" Baja Designs OnX6 light bar
- 16,000 lb winch
- ARB onboard air compressor
- Electric entry step
- MORRFlate Duo with dual tire hose kit, 24 ft hoses
- Perimeter lights

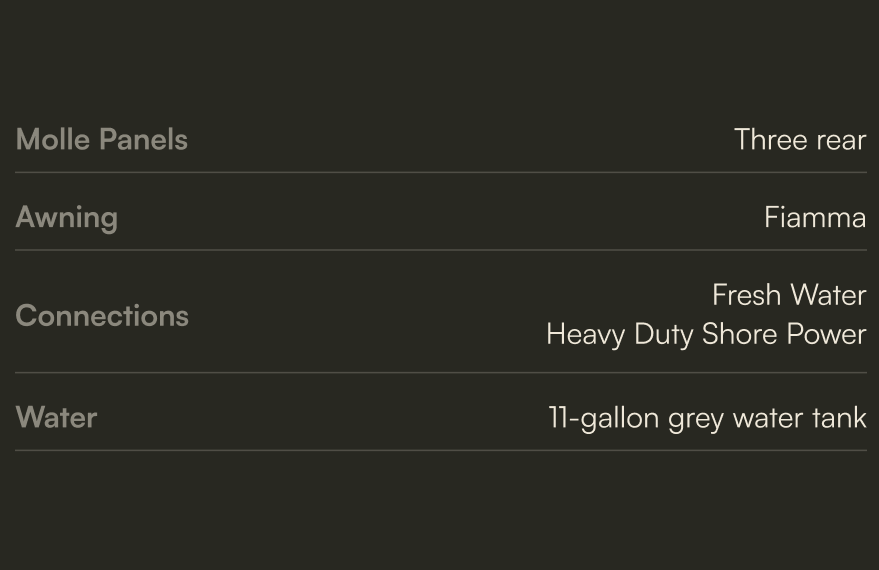

Storage & Utility

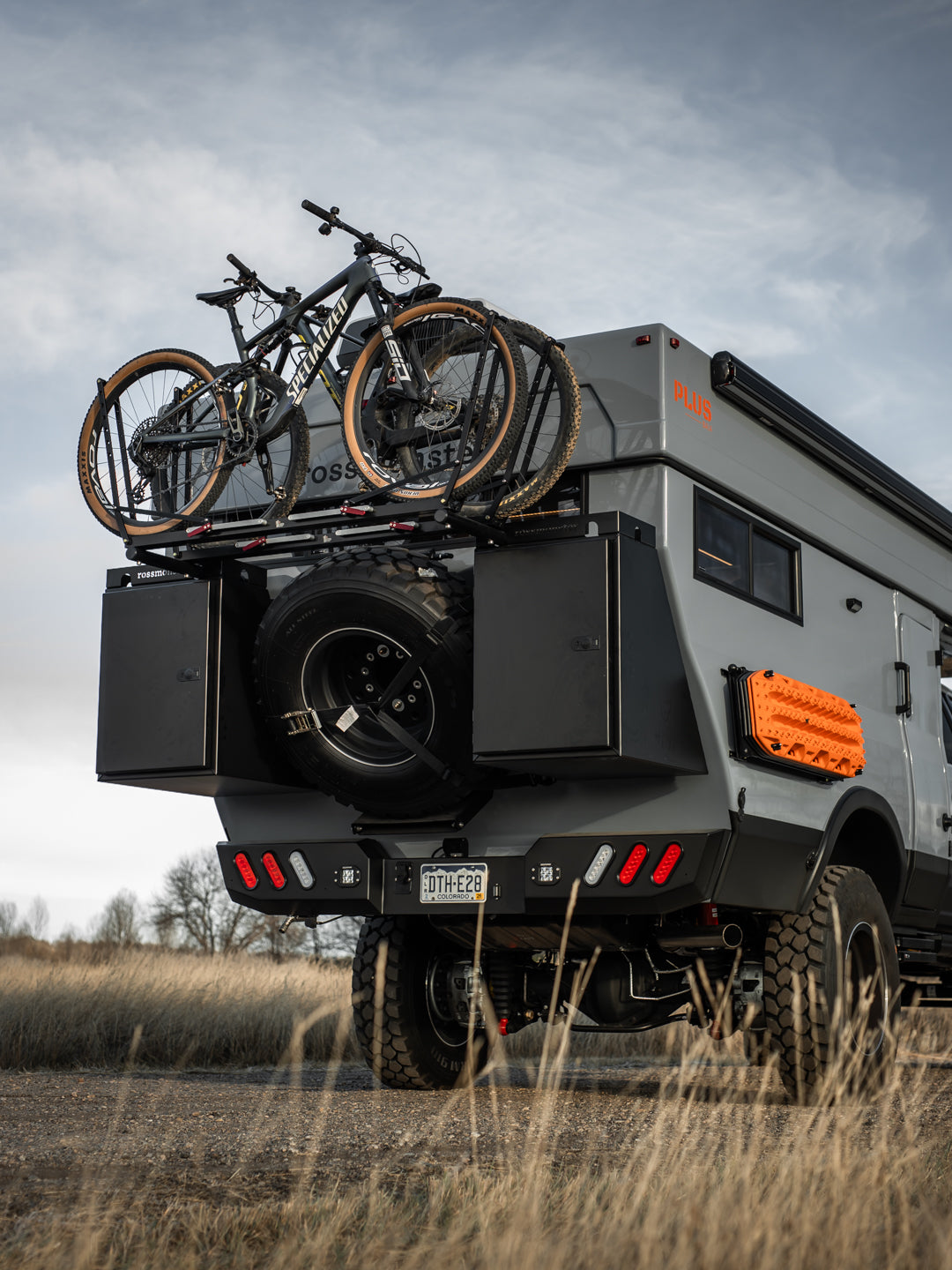

- Three rear MOLLE panels
- Fiamma awning
- Exterior shower

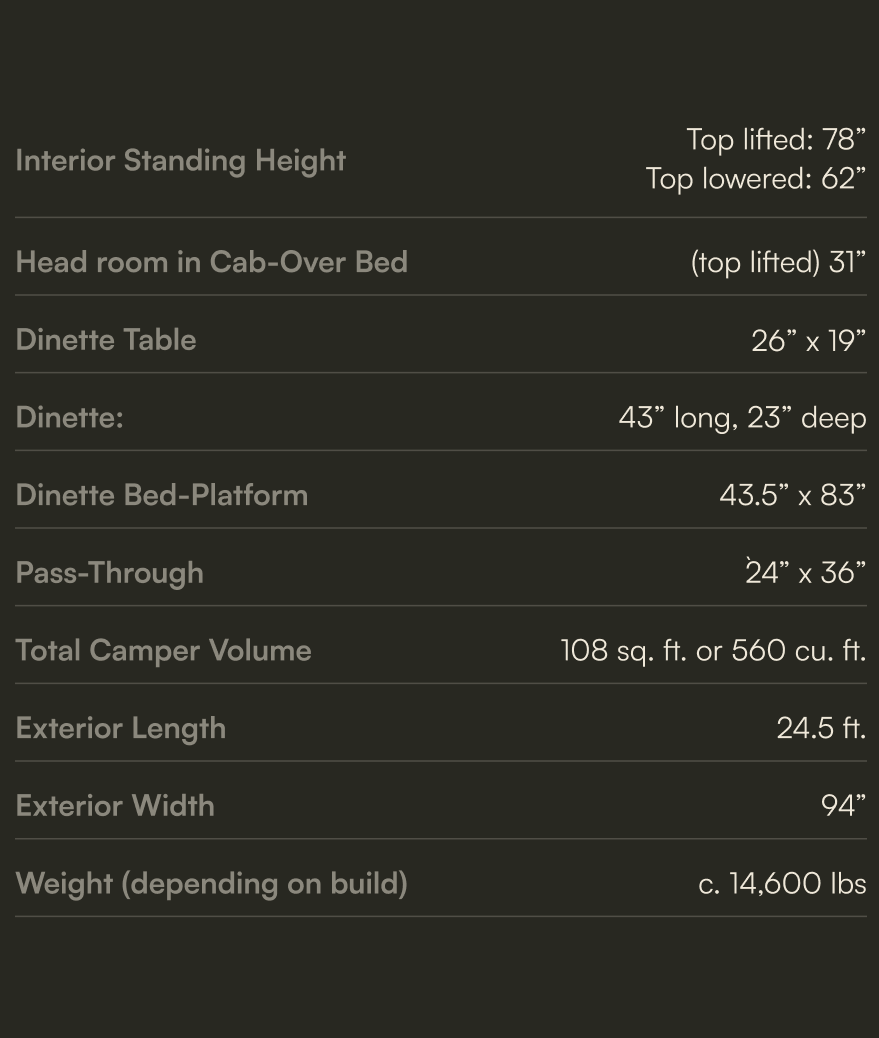

Measurements
Available Upgrades
- Standard wedge or side-entry storage box
- Ski storage box
- Skinny storage box
- Rooftop tent
- Infinity shower
- HQ pick-up and hand-off experience
