THE ROSSMÖNSTER BAJA SERIES

Baja Trail
Title

Designed for unparalleled comfort, off-road capability, and ultimate versatility.

The Baja Trail sets itself apart from the Baja Plus with its smaller, more versatile footprint, offering enhanced maneuverability. Built on the RAM 3500 and F-350 platforms, this configuration is ideal for adventurers seeking a nimble, lightweight vehicle that can confidently go anywhere.

Starting at $371,924

Connect with our team!
Title

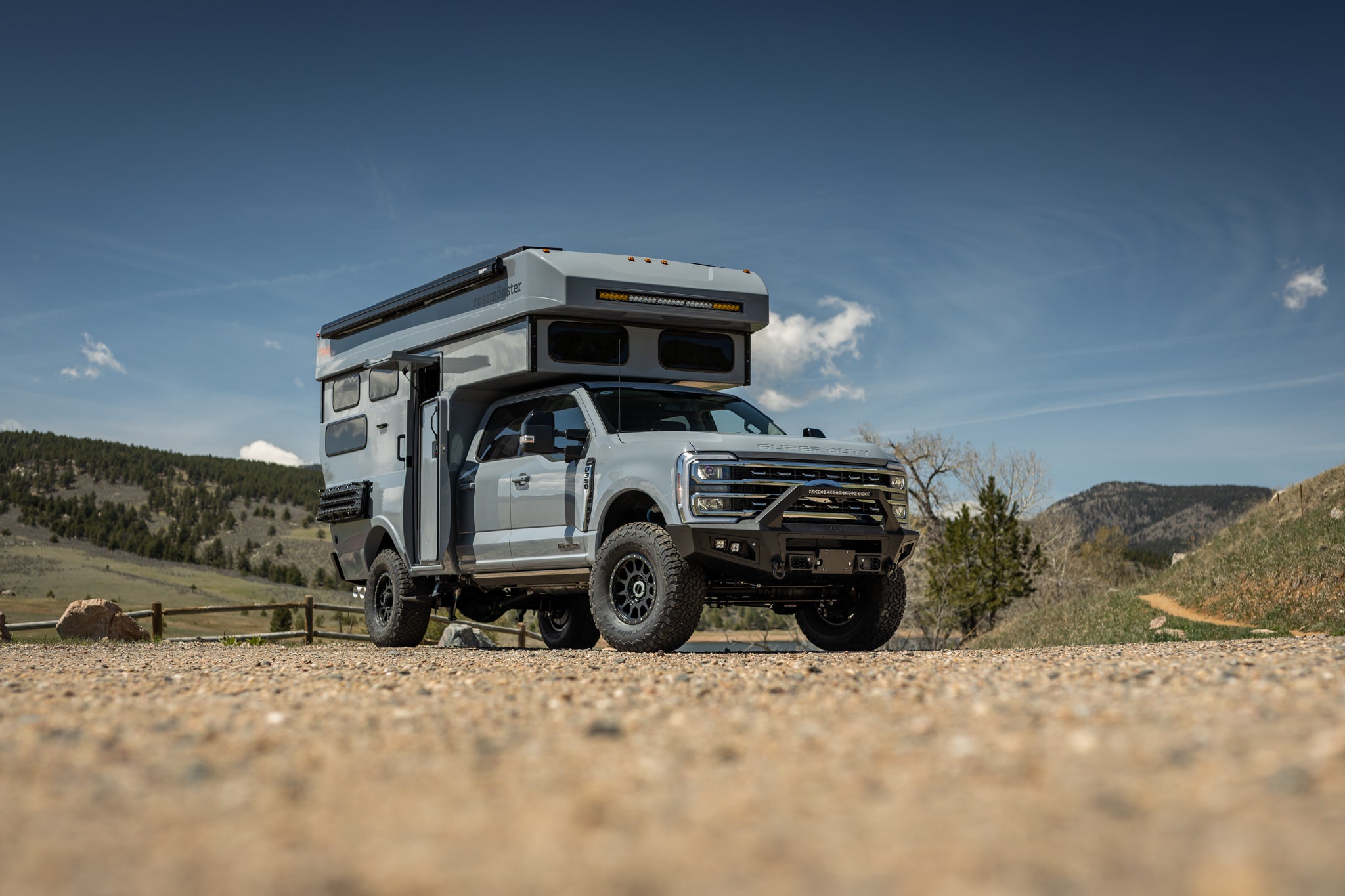

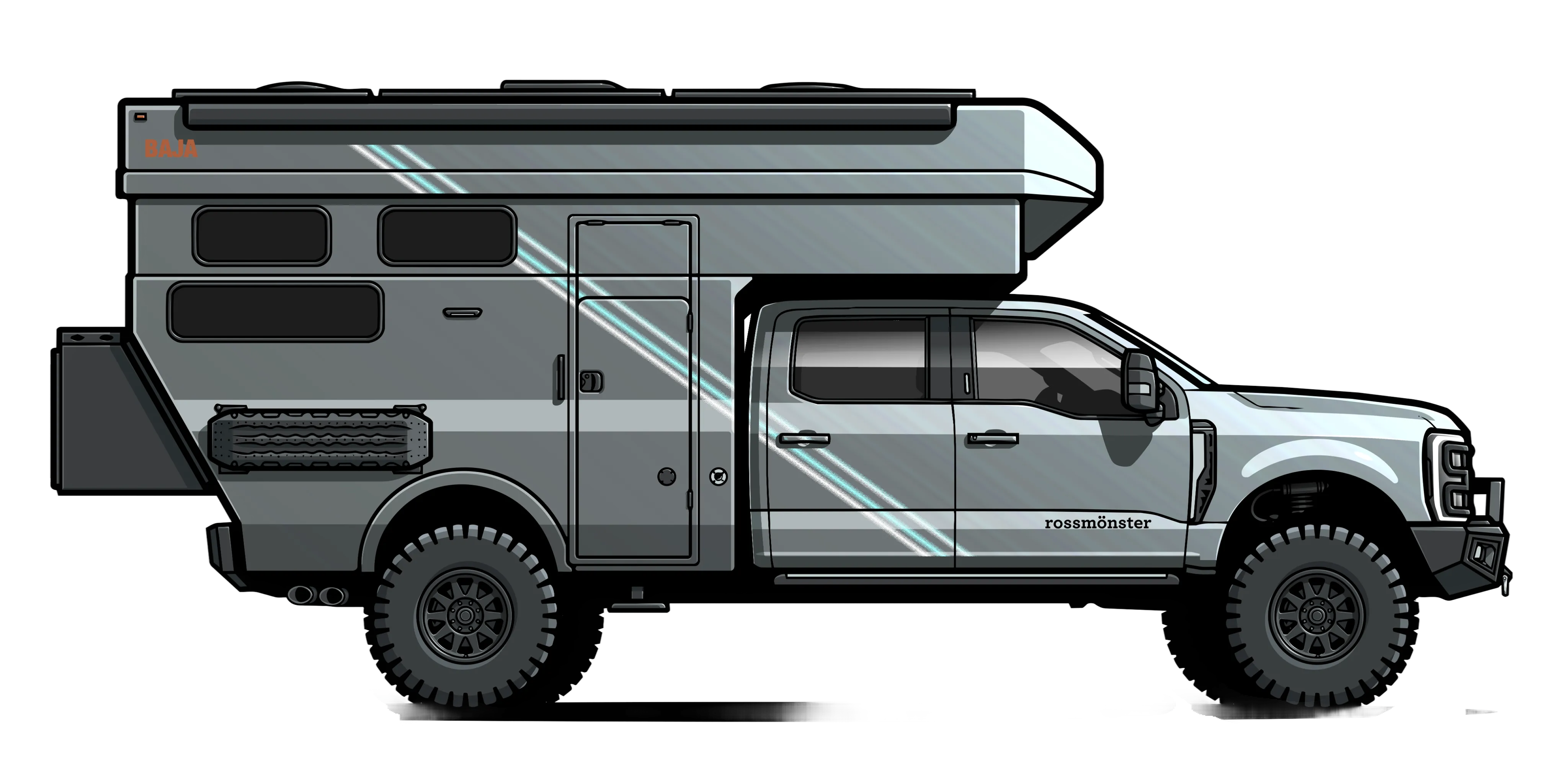

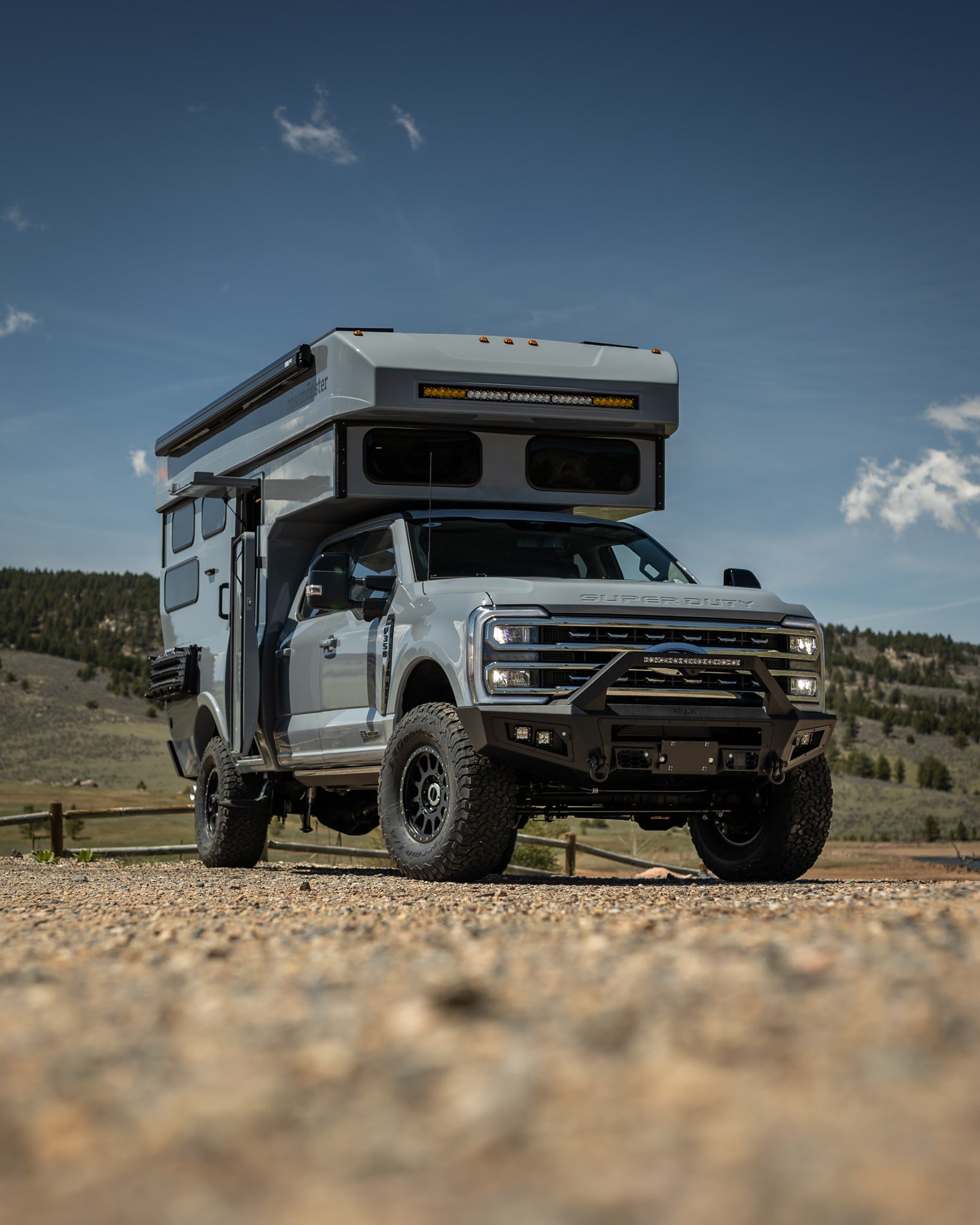

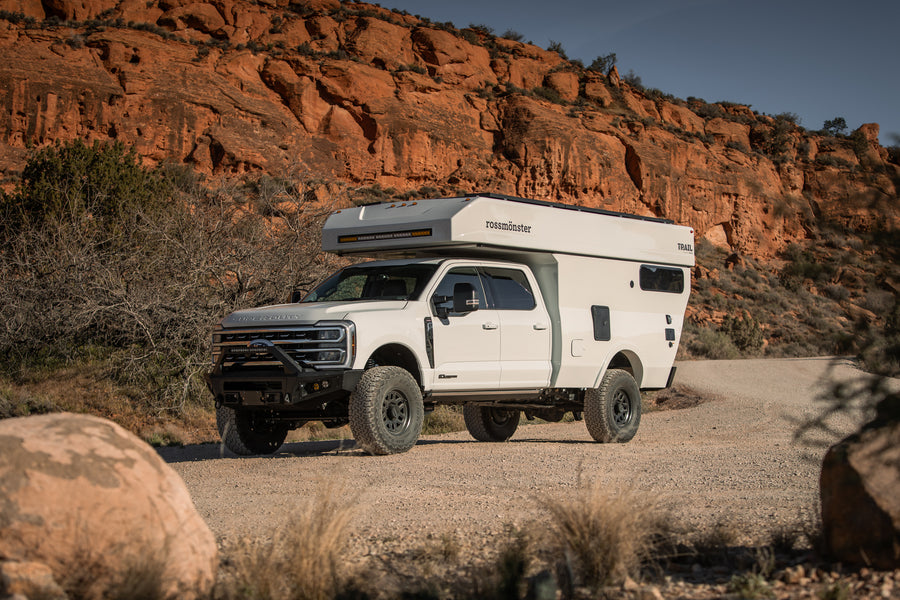

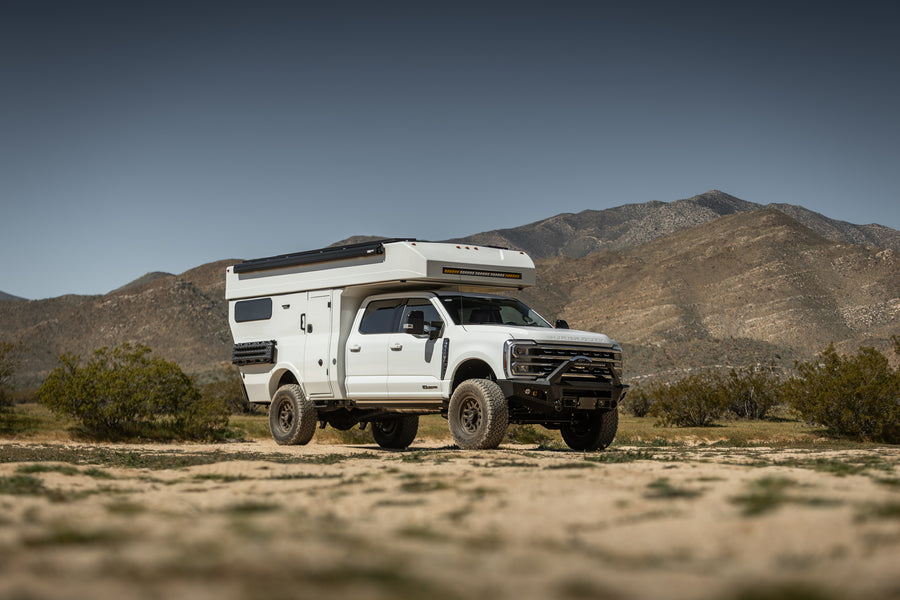

MEET THE ROSSMÖNSTER BAJA TRAIL

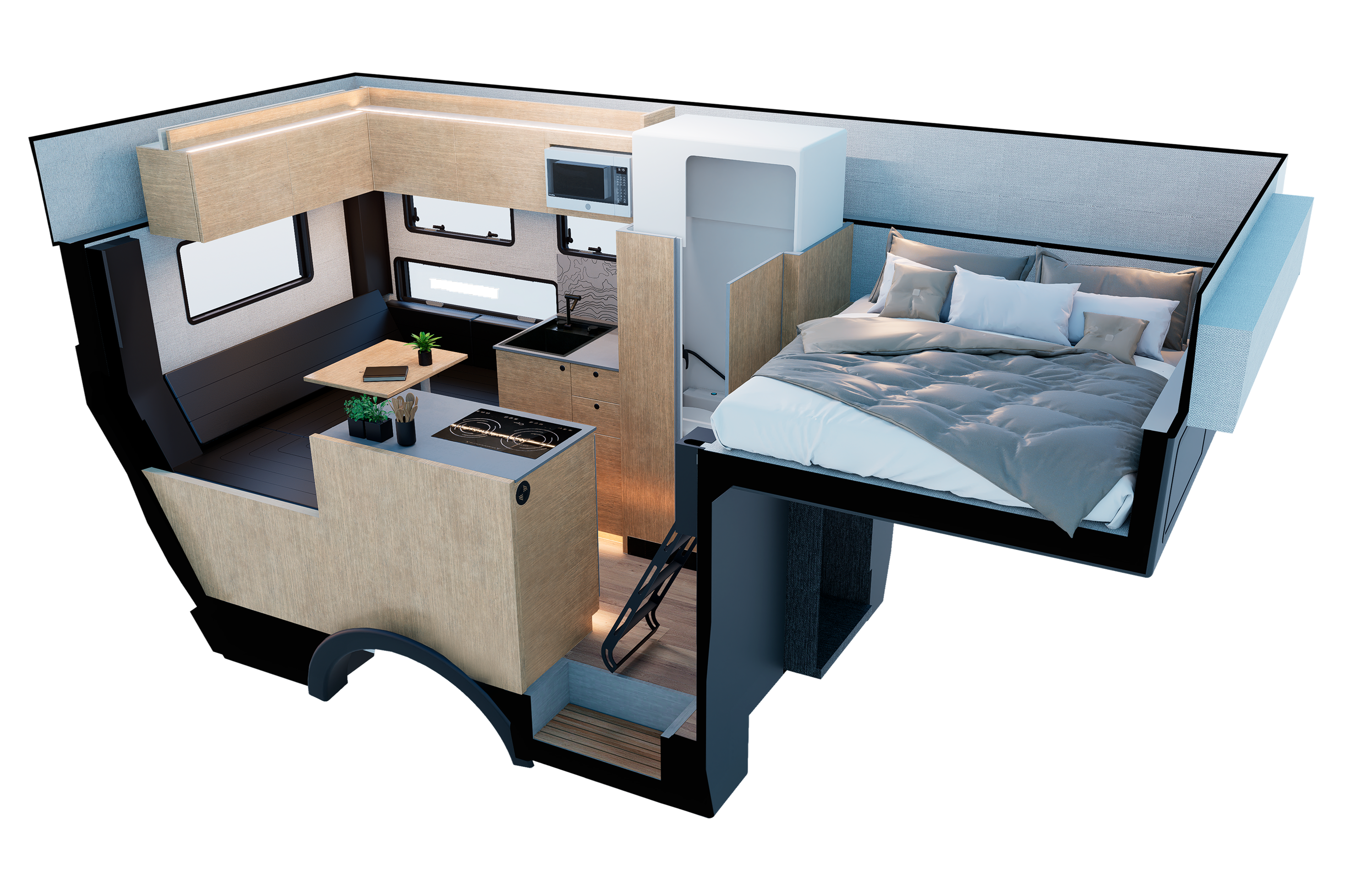

  • LX FLOORPLAN

  • EX FLOORPLAN

The LX puts luxury first, housing a full-size wet bath stall with a teak slated floor and shower door that seamlessly blends with the rest of the camper’s cabinetry. This layout is ideal for those who prefer a bit of privacy for their bathroom activities and who look forward to a luxurious shower after a long day of exploration.



The EX stands apart from its LX counterpart with a versatile folding shower (instead of the full-size wet bath stall found in the LX), allowing for a larger fridge, more countertop space, and more living area within the camper when the shower is neatly folded away. This layout is ideal for those who don’t mind erecting the shower when it’s time for a rinse, or who prefer to utilize the outdoor hot-water shower to take in the surrounding views.

Baja Trail Colors:

  • White

  • Silver

  • Grey

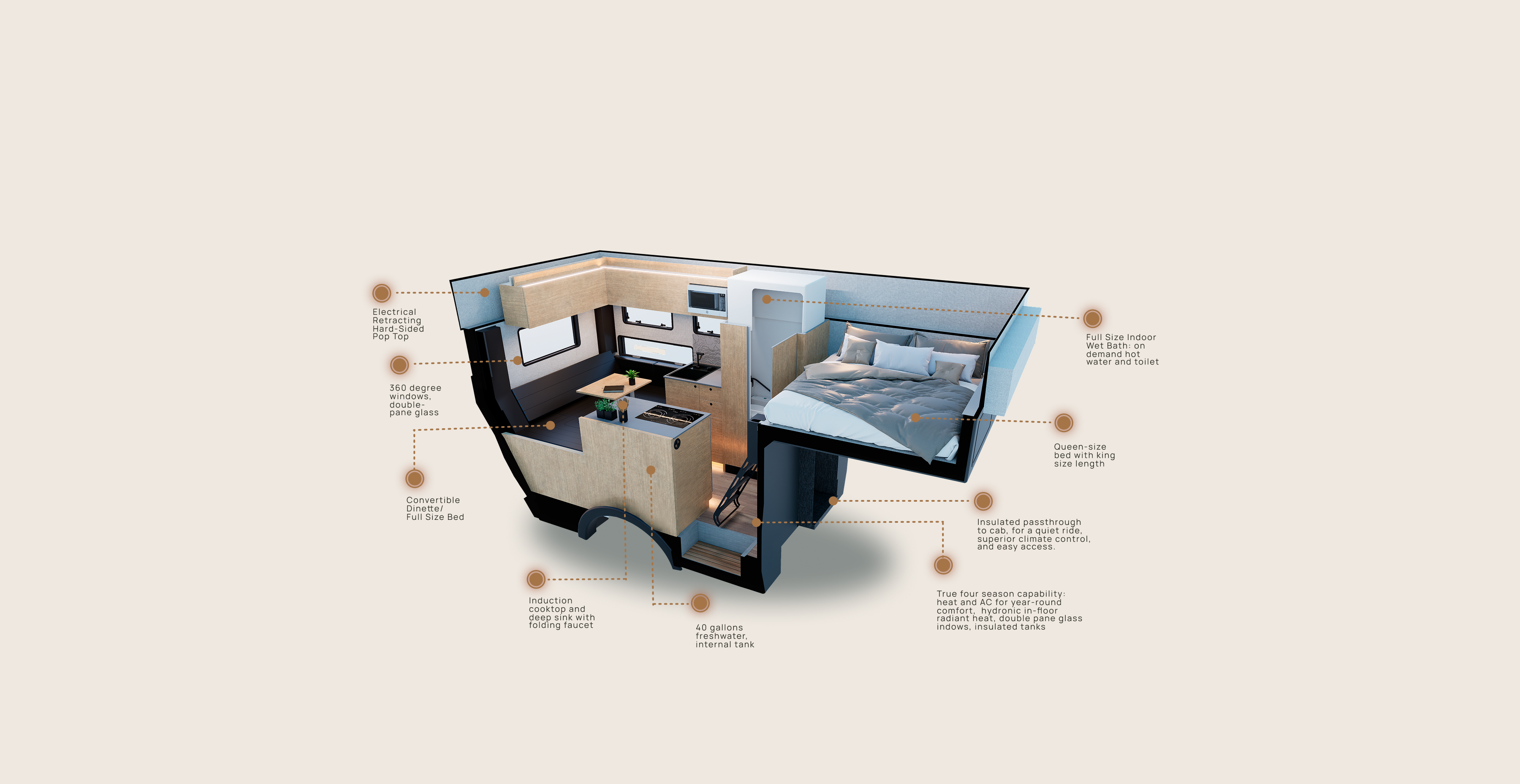

Overview and Highlights
Title

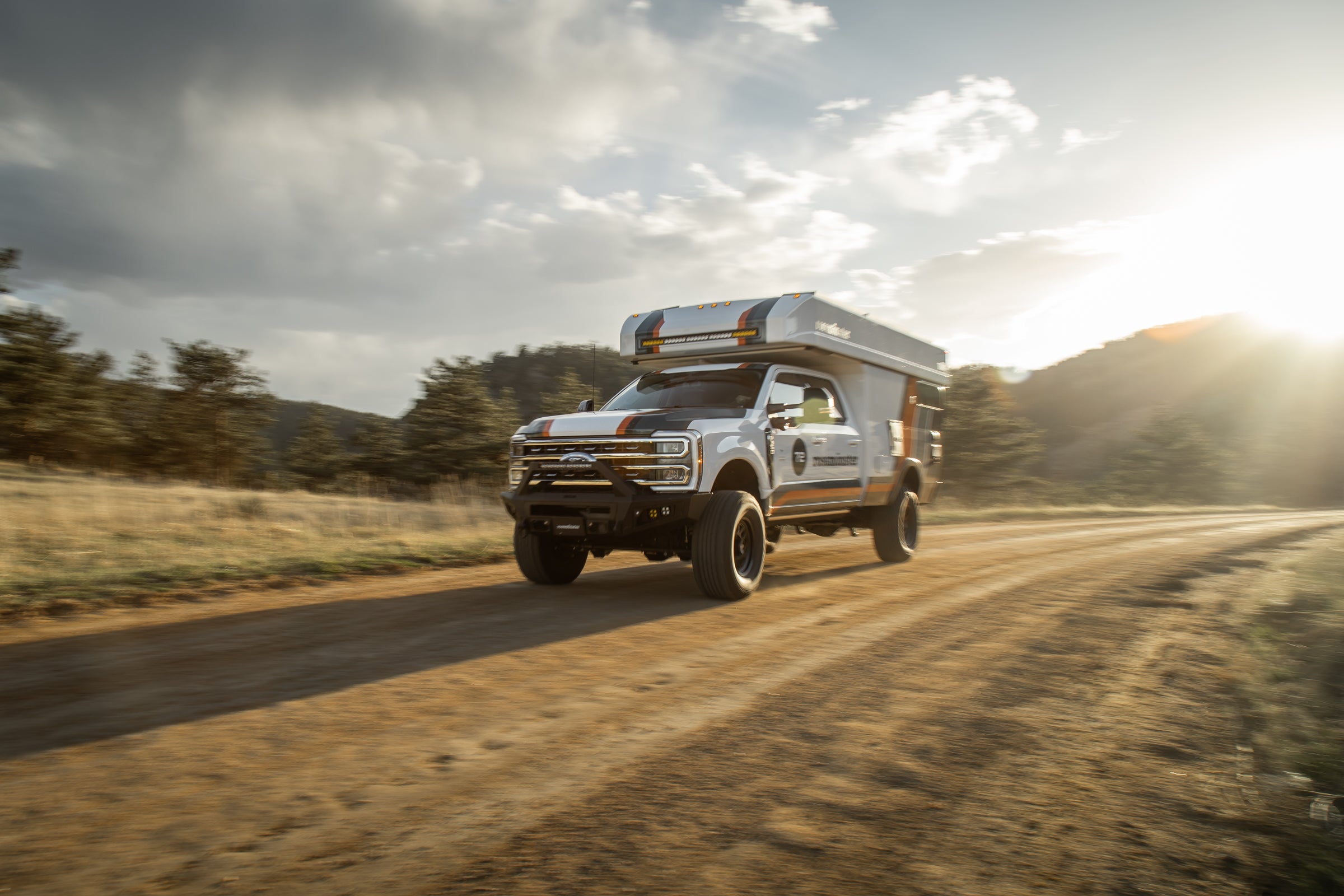

Designed for off-grid living and off-road exploration

Built and equipped to help you explore uncharted terrain with confidence.

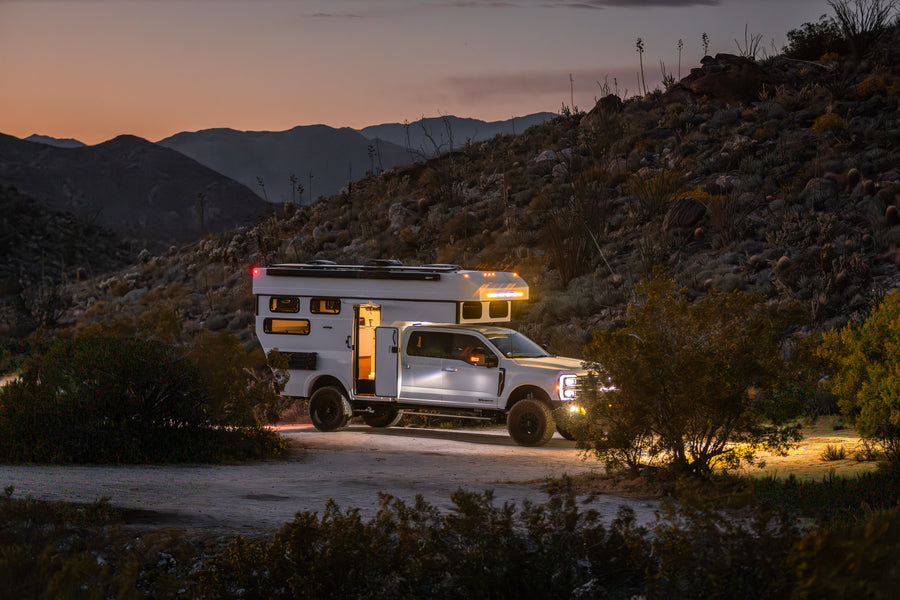

Proprietary hard-walled pop-top camper:

78″ interior height with top lifted, comfortable standing for adults up to 6 ft 5.

True four season capability + Heat and AC for year-round comfort

Hydronic in-floor heat, heat/hot water system, and a 12V AC unit, all supported by a hefty power system designed for off-grid living.

Pass-through connecting the cab to the camper

Insulated pass-through for a quiet ride, superior climate control, and easy access.

360 degree windows

Large, awning style windows throughout the perimeter of the camper to fully enjoy the surrounding views.

Full-size indoor wet-bath

The LX highlights a full-size wet-bath shower stall with toilet for maximum privacy.

CAPACITIES

Designed for long-term off-grid comfort.
  • Fresh water: 40-gallons
  • Batteries: Up to 1200 AH Lithium Iron Phosphate
  • Solar: 600 W Solar Array
  • Inverter: 3000 W
  • Riding: Up to 4
  • Sleeping: Up to 4

CHASSIS & Exterior UPGRADES

Built to take on even the most rugged terrain.
  • Built on a 1-ton chassis

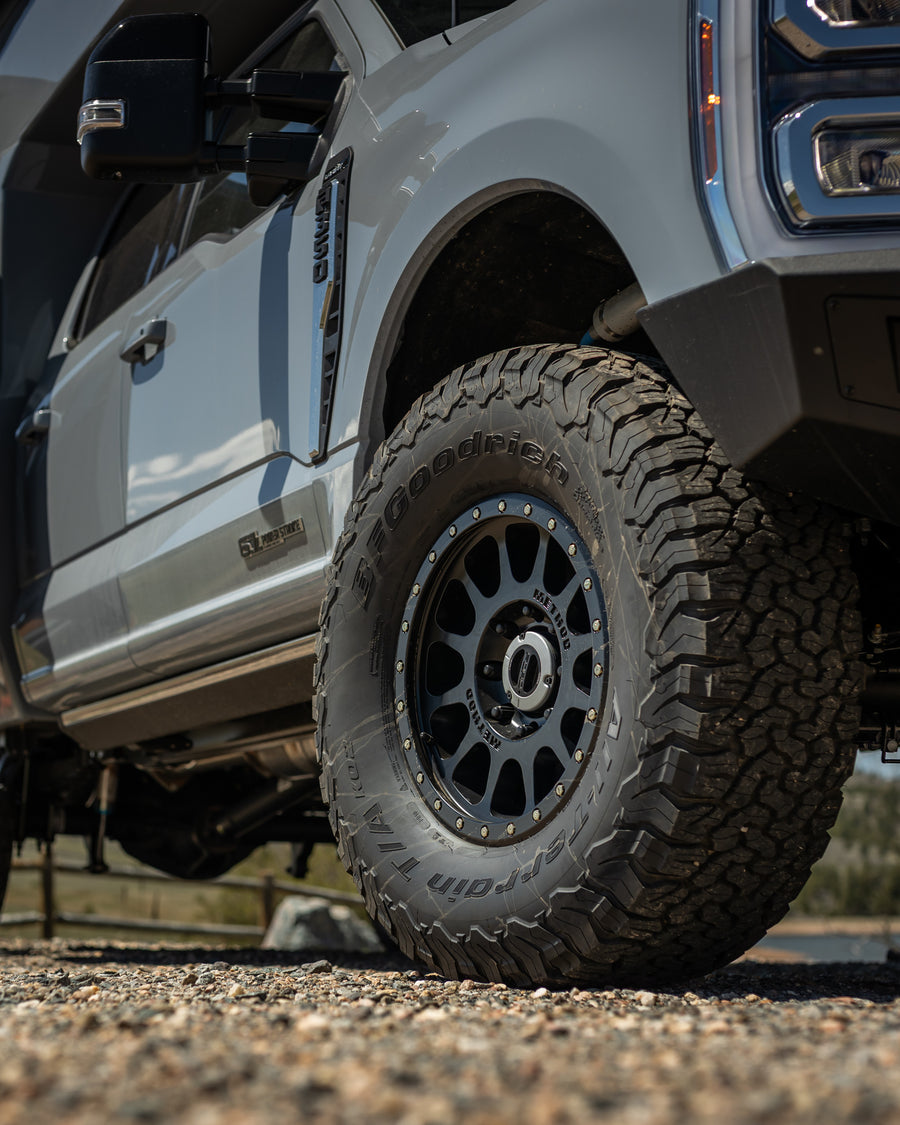

  • Carli Suspension
  • Upgraded wheels and tires
  • Upgraded bumpers + LED lighting

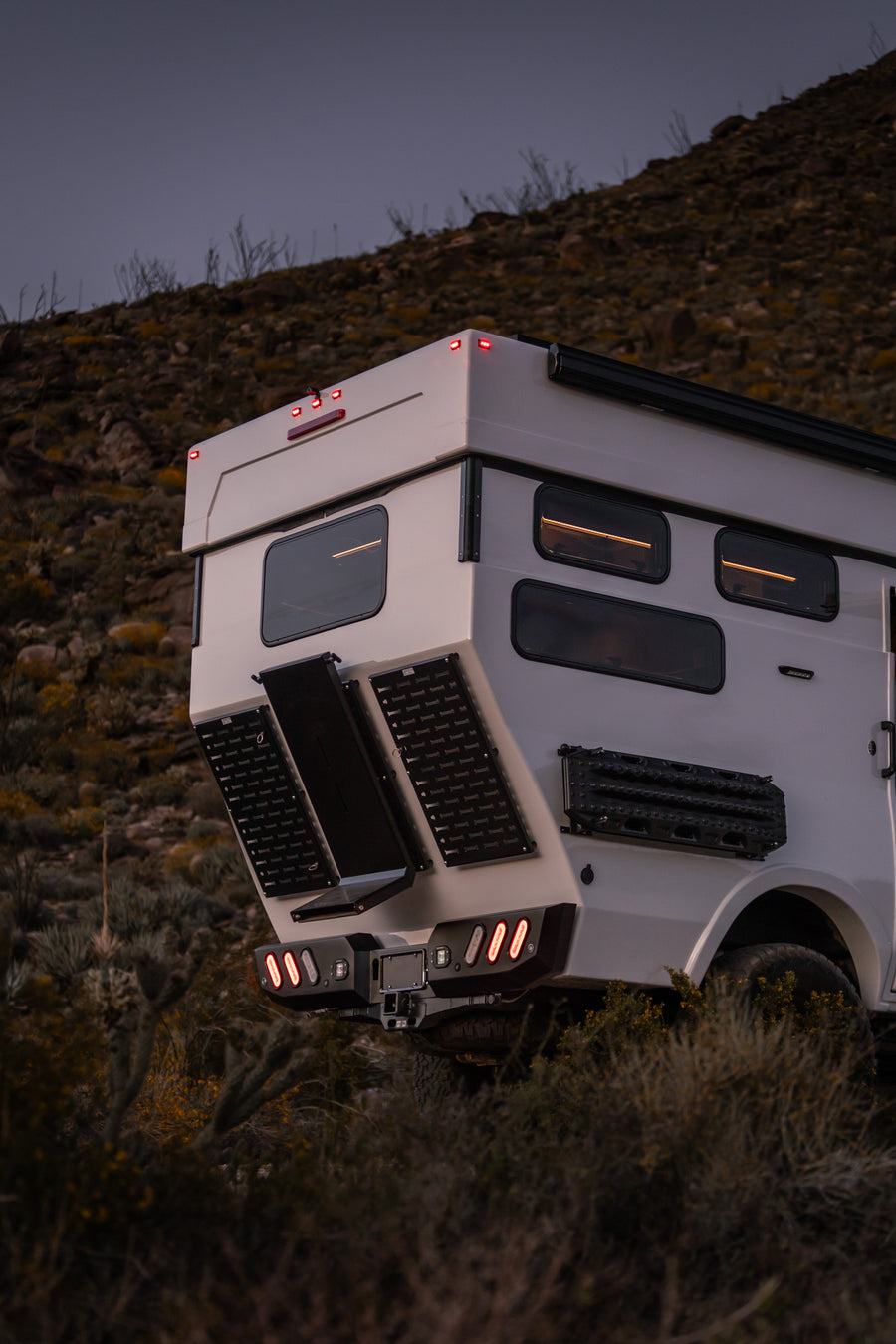

  • 3 rear molle panels
  • Locking wedge-style storage box
  • Fiamma awning
  • MaxTrax Table mounting System

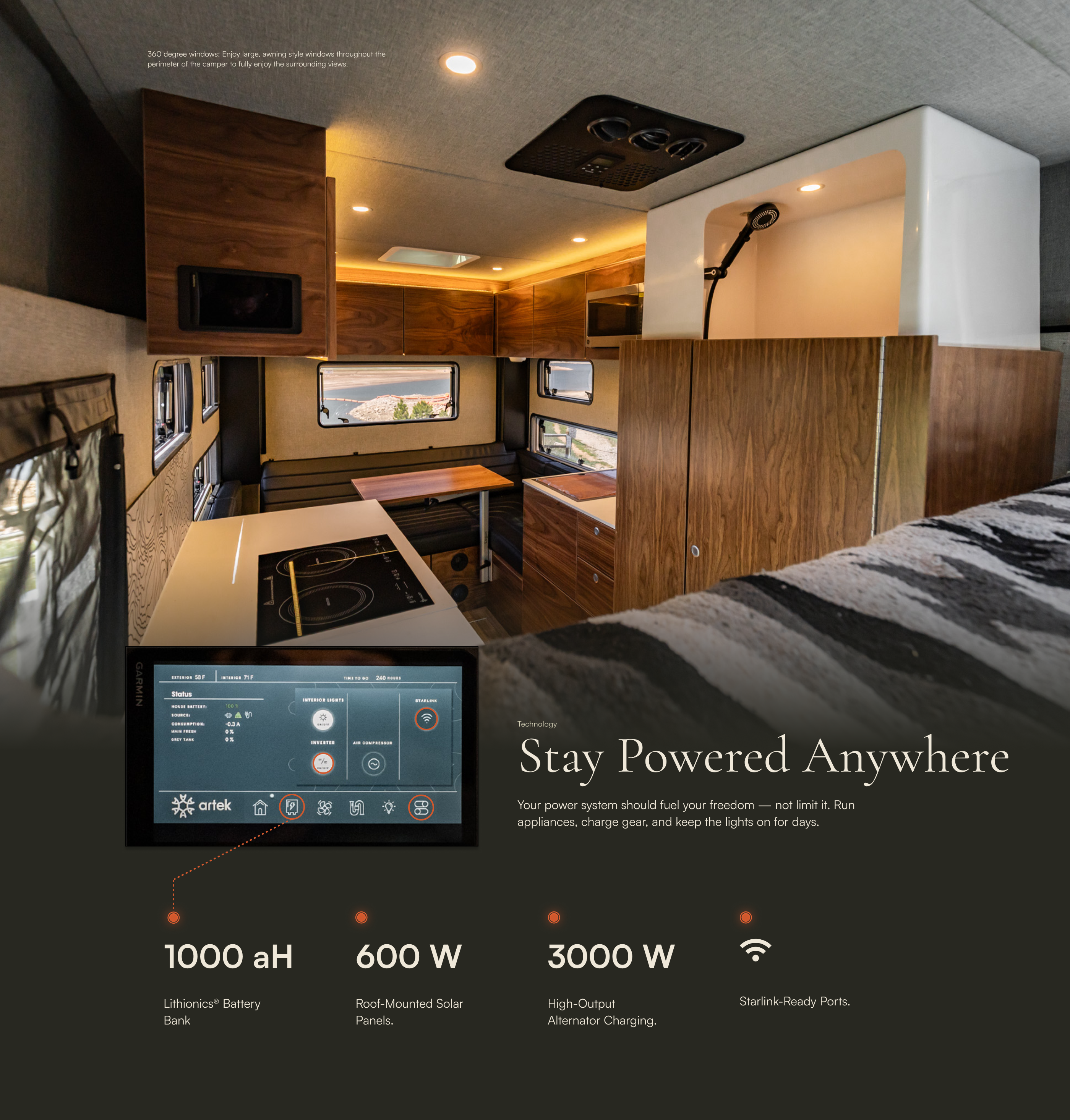

TECHNOLOGY

Systems designed for true four-season comfort and ease of use.
  • Touchscreen operating system
  • Bluetooth battery monitor
  • 12V AC system
  • Hydronic heat and hot water system + hydronic in floor heat

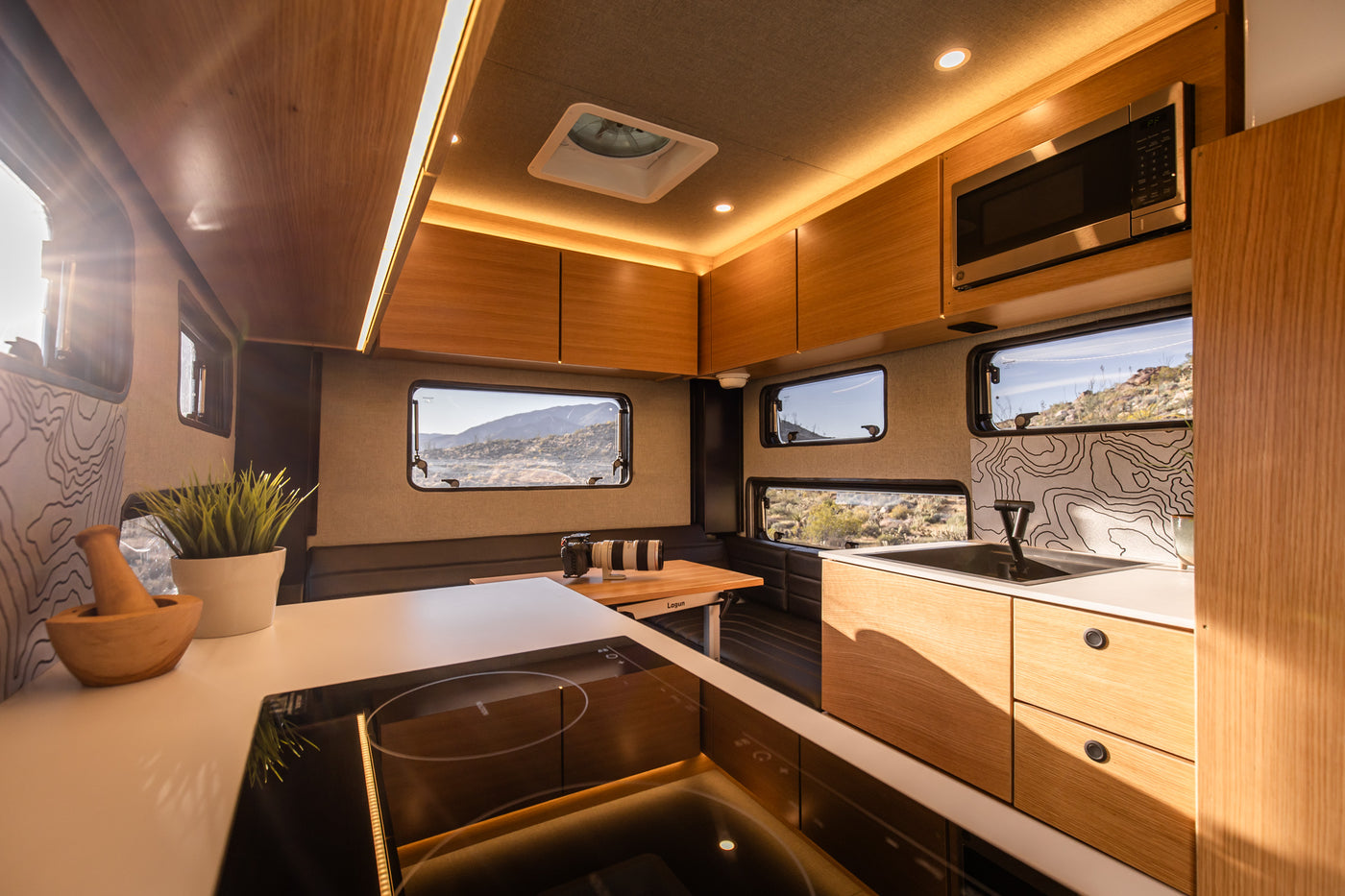

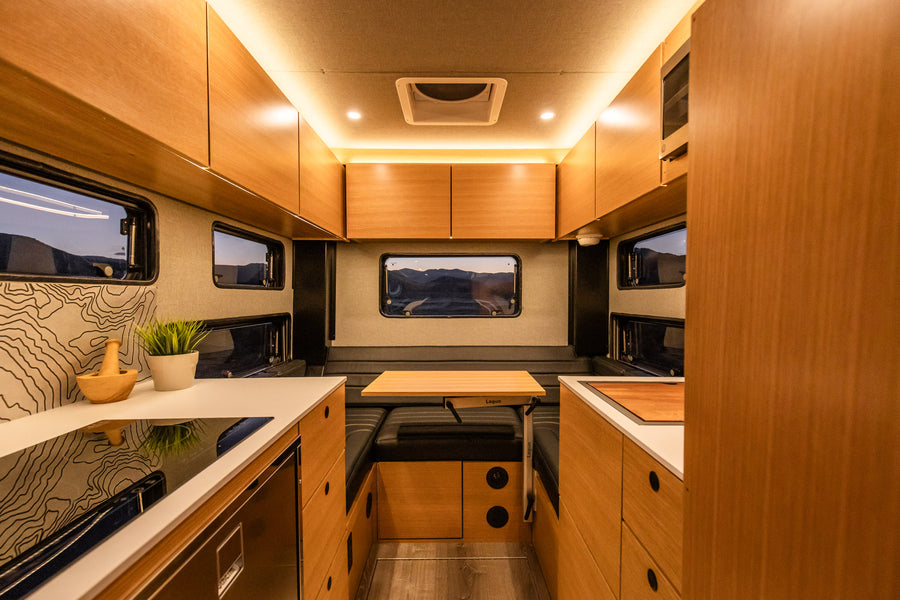

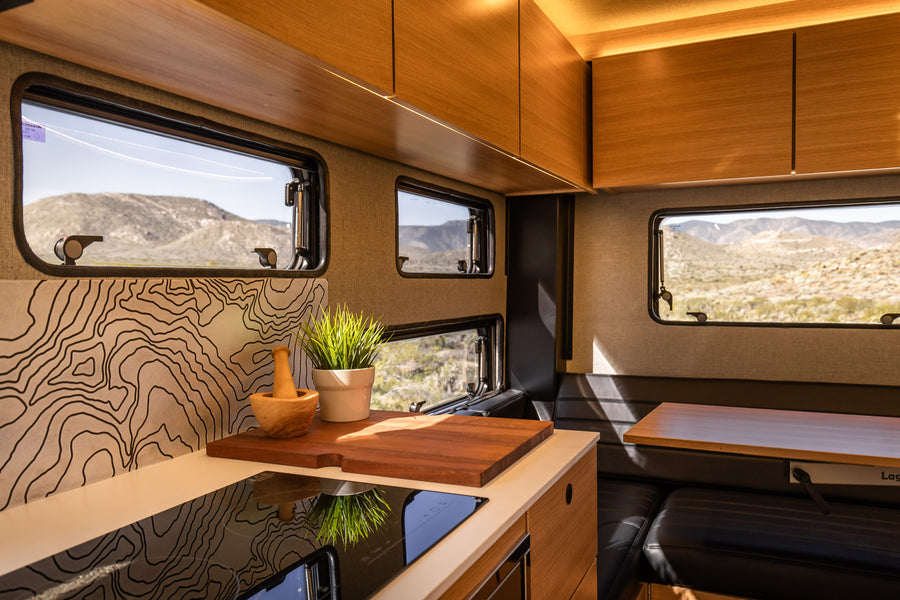

KITCHEN

Everything you need for a home-cooked meal, wherever you decide to put it in park.
  • Custom topo etched backsplash

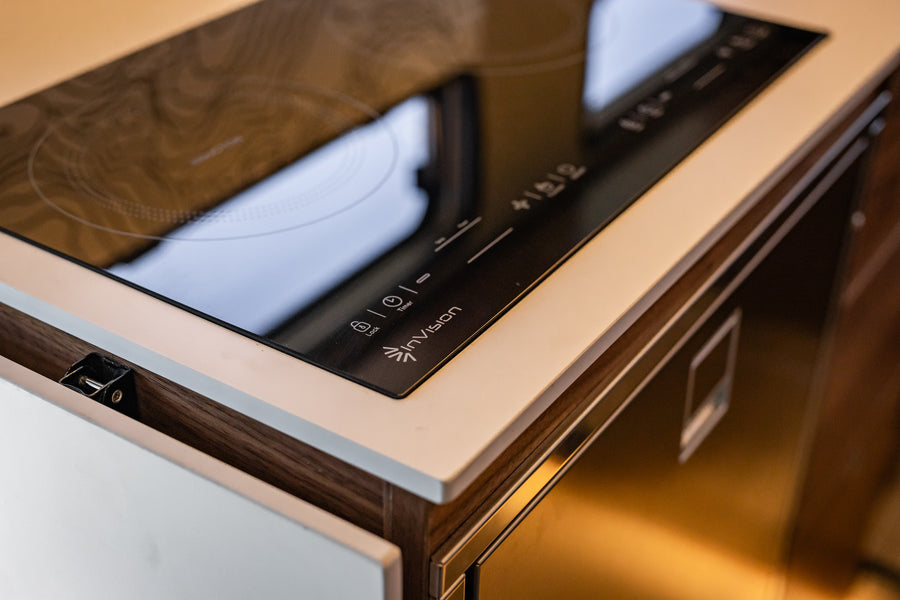

  • Two burner induction cooktop
  • Roomy 4.6 Cubic ft door style fridge and freezer
  • 16″x20″ sink with folding faucet
  • Ample solid surface countertops [Total Length: 90″ (driver 29″, passenger 39″, countertop extension 20-22″)]

DINETTE

Gathering area by day, luxurious sleeping area by night.
  • Handmade 19″x28″ table with Lagun mounting system
  • Dinette with room to sit 4-5 adults (*upholstery options available)
  • Convertibility to a secondary 42″ x 75″ sleeping area

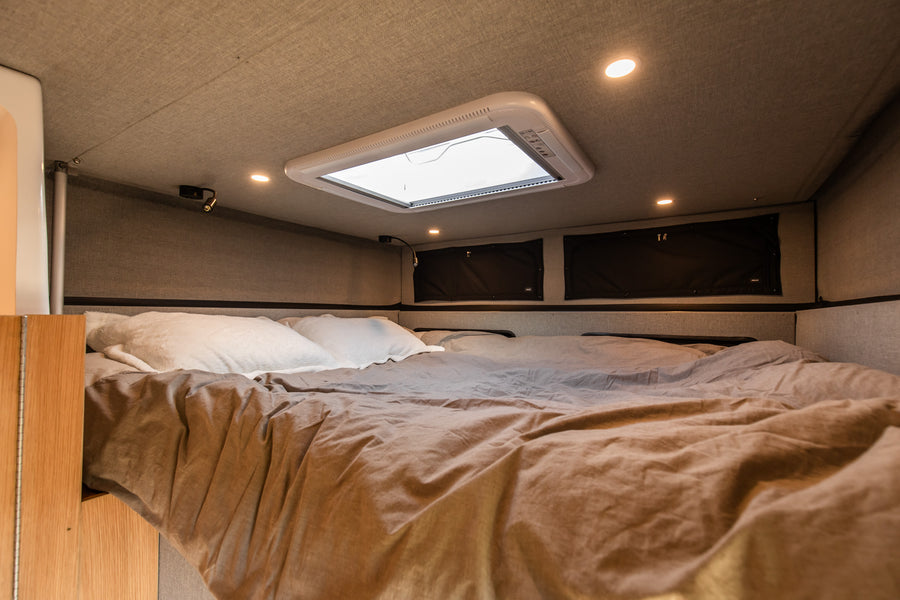

BED

The Cab-over bed in the LX is 59″ by 74″, and will comfortably sleep adults 6 ft 3 inches and shorter.
  • Headspace with top lifted: 32″
  • Charging cubby
  • Touch activated reading lights
  • Angled ladder for easy bed access

BATH

Roomy wet bath stall with 6 ft, 2 inches of standing room, toilet storage, and a teak shower floor insert for luxurious hot showers while out on the road.
  • Wet-bath stall with teak floor insert (23″ x 34″ x 74″)
  • Outdoor hot-water shower
  • Casette or composting toilet options

Interior

Exterior

Specs

General
Title

+  Interior Standing Height (top lifted): 80″

+  Interior Standing Height (top lowered): 64″

+  Head room in Cab-Over Bed (top lifted): 32″

+  Dinette Dimensions: 42″ long, 23″ deep

+  Dinette Bed-Platform Dimensions: 42″ x 74″

+  Pass-Through: 24″x36″

+  Total Camper: 91sf or 475cu ft

LX FLOORPLAN



+  Total Countertop Length: 90″

+  Aisle Width: 26″

+  Upper Cabinet Storage Capacity: 16 Cubic Ft

+  Shower Stall Dimensions (top lifted): 23″ x 34″ x 74″ tall

EX FLOORPLAN



+  Total Countertop Length: 101″

+  Aisle Width: 25″

+  Upper Cabinet Storage Capacity: 18.75 Cubic Ft
Title

A model for every type of adventure
Title

Baja TRAIL
Title

Designed for unparalleled comfort, off-road capability, and ultimate versatility.

Starting at: $379,984

Sleeping Capacity:
Up to 4

Riding Capacity:
Up to 4

Chassis:
Diesel or Gas Powertrain One ton Chassis
Full size side door entry Truck & Cab passthrough

Interior:
Hard-sided actuating top
Premium Corian Countertops (White)
Light gray walls and ceiling
Queen-size cab-over bed (59" x 74")
Convertible rear dinette
130L fridge and freezer (LX Floorplan)
160L fridge and freezer (EX Floorplan)
16”x21” sink
Upper and lower cabinet storage
Table with Lagun mounting system
40-gallon fresh water tanks
Exhaust fan
Four season insulation

Hydronic heat
Hot water system
Hydronic in-floor heat
Nomatic X2 AC

Integrated blackout shades & bug screens

Exterior:
Three rear molle panels
Fiamma awning
Fresh Water Connection
Heavy Duty Shore Power Inlet

Safety:
Smoke / CO Detector
Fire Extinguisher

Kitchen:
Stainless Steel Sink with Folding Faucet
Refrigerator/Freezer
Stainless Steel Microwave Oven
Induction Cooktop

Bath:
Exterior Shower
Trelino Composting Toilet
Diesel or Gas Fired Water Heating System

Energy System:
12V AC unit
600 W solar array
1200 Ah lithium
3000 W inverter

Warranty:
3 year, 36,000 mile limited Rossmönster
5-year/100,000 Mile Federal Diesel (if applicable)
5-year/100,000 Mile Powertrain

Baja Features:
MaxTrax table with MKII boards

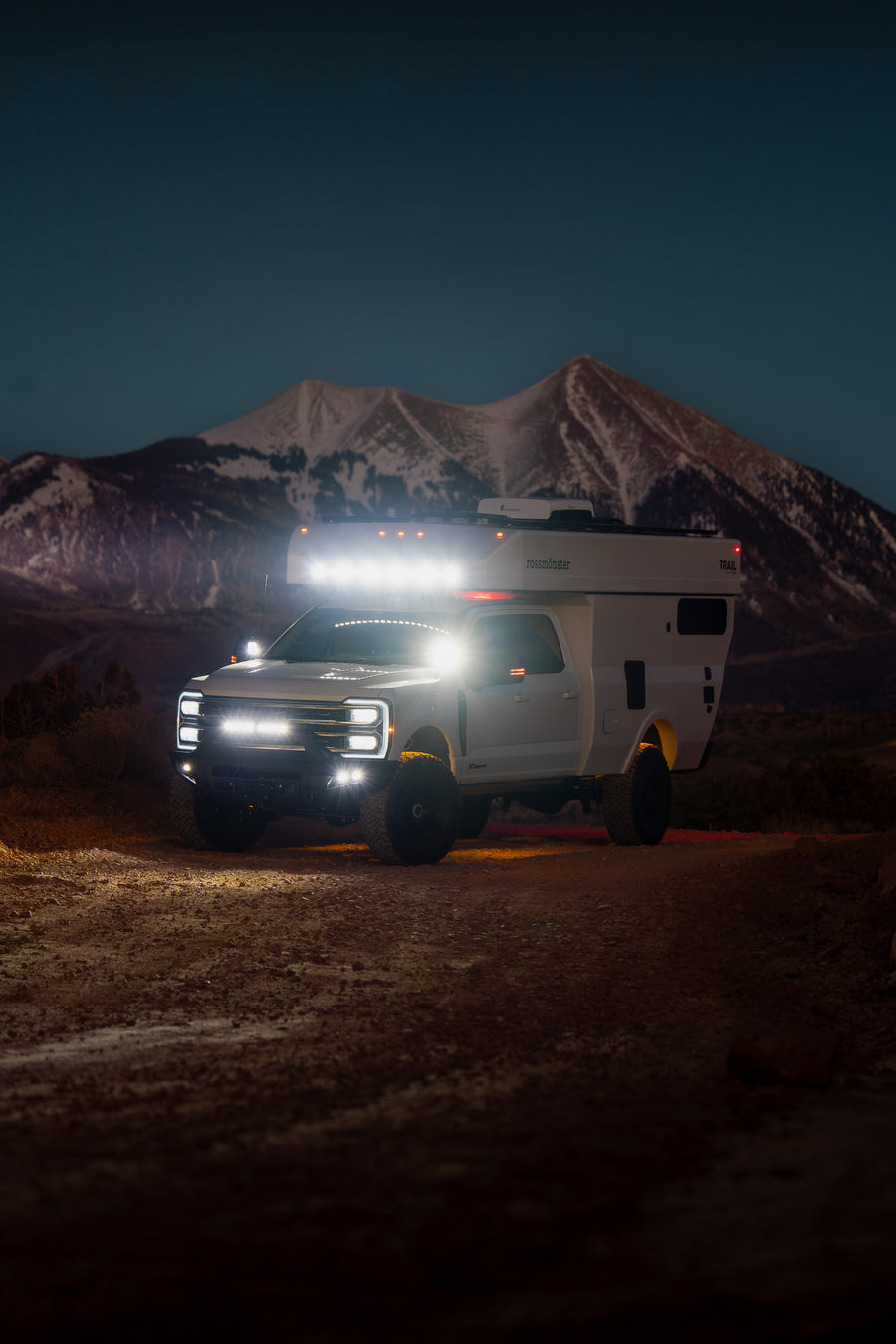

50” OnX6 Baja Designs light bar

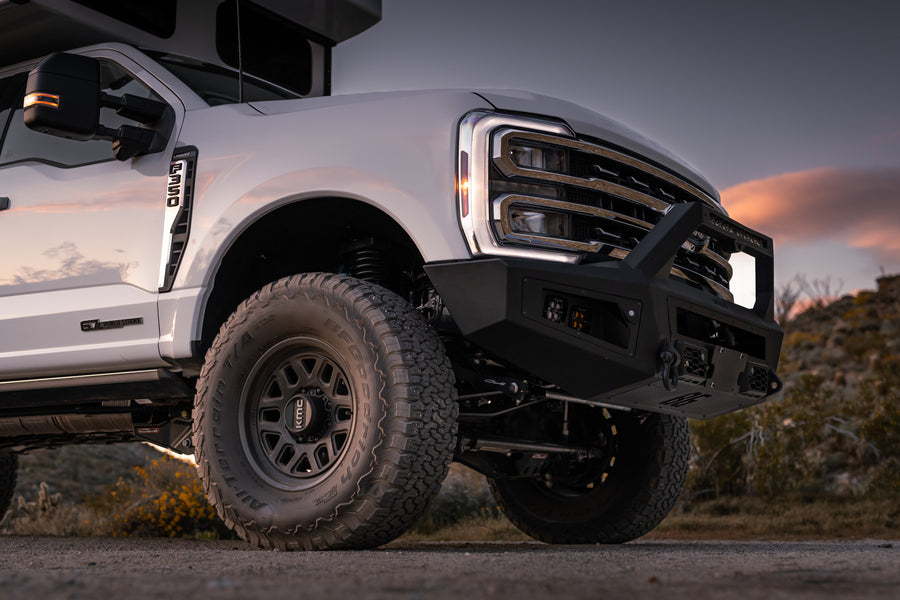

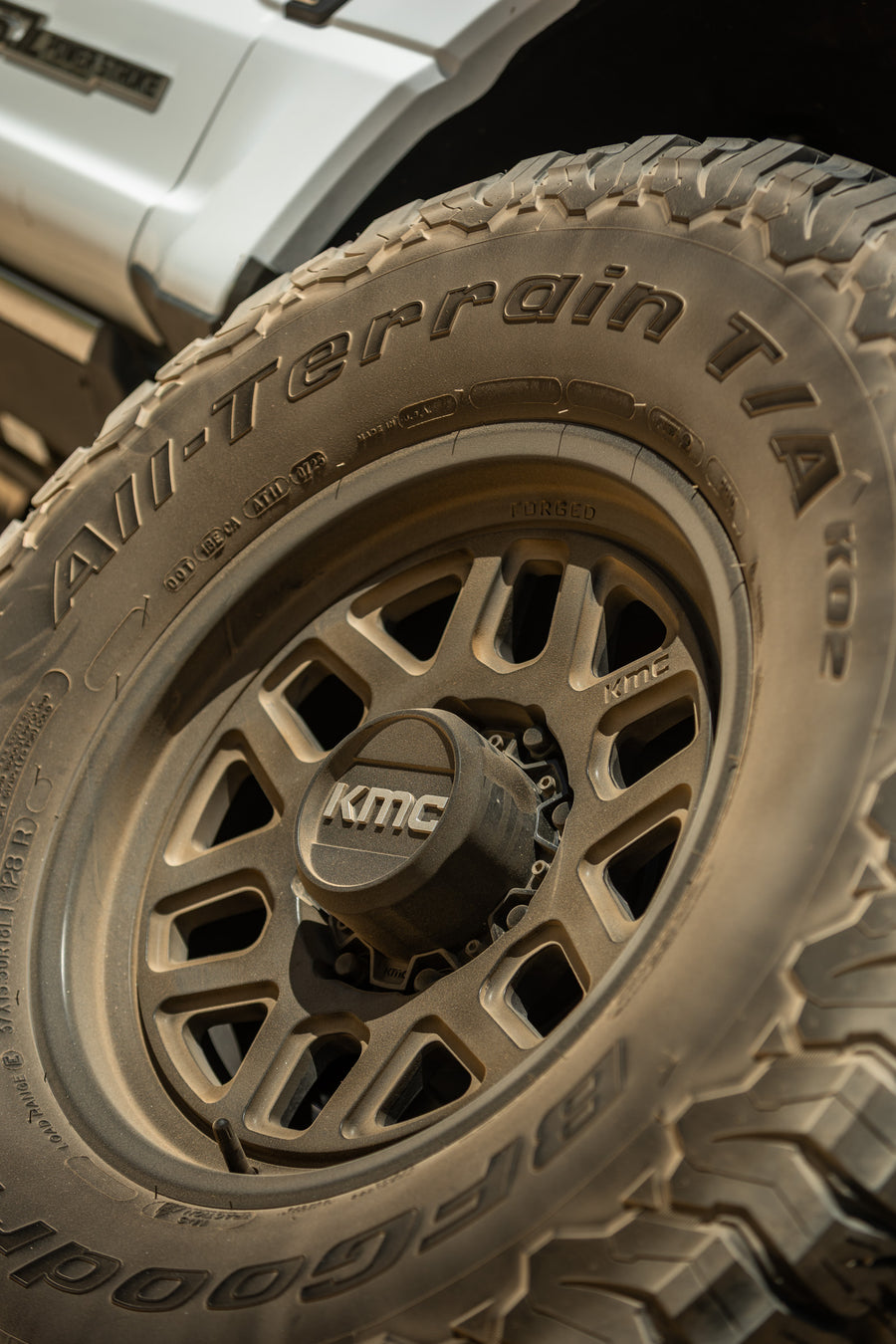

Method HD wheels w/ 37" BFG KO2 tires

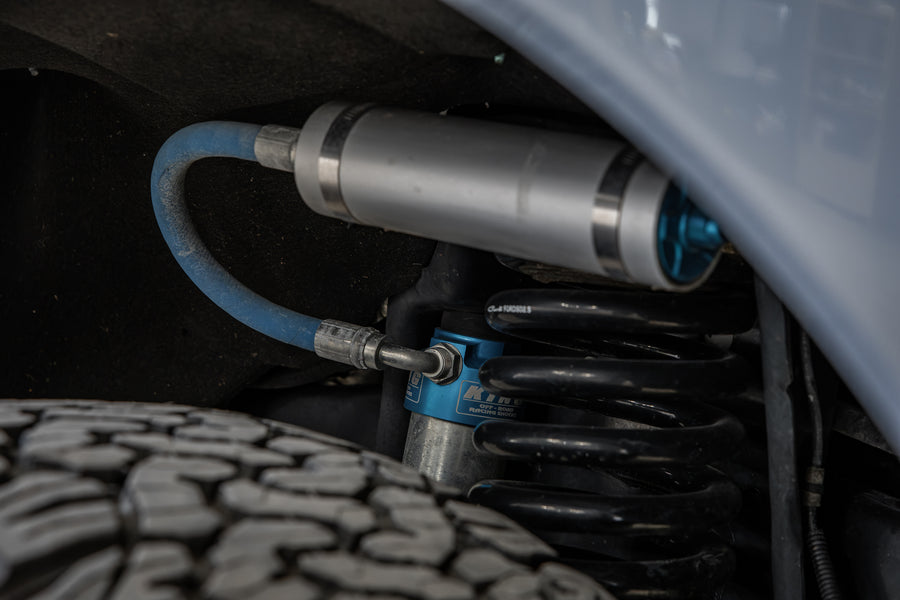

Carli Suspension Pintop 3.5” system

ARB onboard air compressor

12V Starlink wire prep

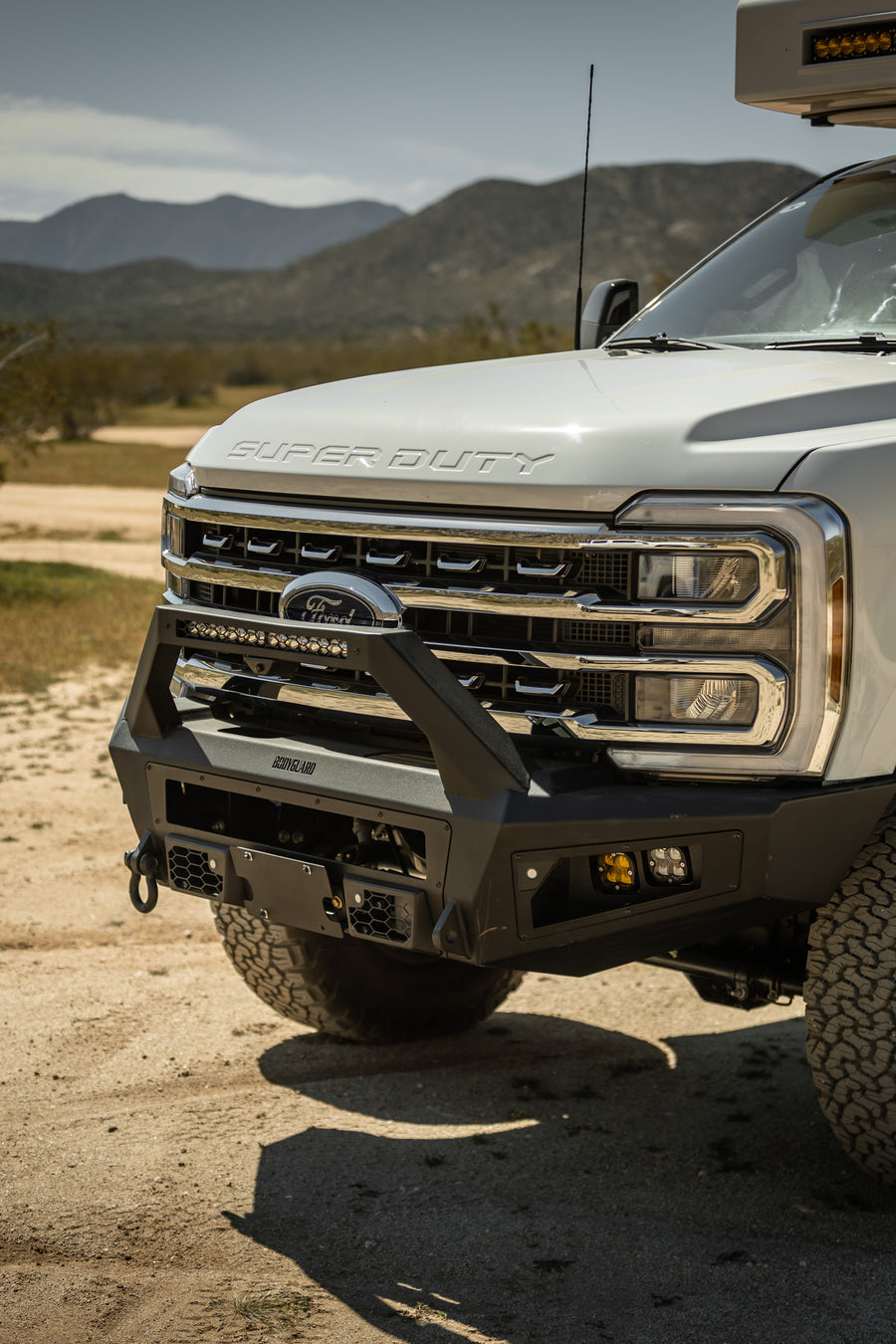

Bodyguard bumper

Bumper cube lights & 20" light bar









Specs:

Interior Standing Height (top lifted): 78″

Interior Standing Height (top lowered): 62″

Head room in Cab-Over Bed (top lifted): 31″

Dinette Dimensions: 42″ long, 23″ deep

Dinette Bed-Platform Dimensions: 42″ x 75″

Pass-Through: 24″x36″



Total Camper: 91sf or 475cu ft

Total Exterior length: 23.5

Total Exterior Width: 85"

Baja+
Title

Designed to deliver everything you love about the Baja, but more of it.

Starting at: $444,611

Sleeping Capacity:
Up to 6

Riding Capacity:
Up to 6

Chassis:
Diesel or Gas Powertrain Built on a Class 5 Chassis
Full-size side door entry Truck & Cab passthrough

Interior:
Hard-sided actuating top
Premium Corian Countertops (White)
Light gray walls and ceiling
Queen-size cab-over bed (59″ x 83″)
Convertible rear dinette
130L fridge and freezer (LX Floorplan)
160L fridge and freezer (EX Floorplan)
16”x21” sink
Upper and lower cabinet storage
Table with Lagun mounting system
68-gallon freshwater (40 interior, 28 exterior)

Exhaust fan
Four season insulation
Hydronic heat
Hot water system
Hydronic in-floor heat
Nomatic X3 AC
Blackout window covers

Exterior:
Three rear molle panels
Fiamma awning
Fresh Water Connection
Heavy Duty Shore Power Inlet

Safety:
Smoke / CO Detector
Fire Extinguisher

Kitchen:
Stainless Steel Sink with Folding Faucet
Refrigerator/Freezer
Stainless Steel Microwave Oven
Induction Cooktop

Bath:
Exterior Shower
Trelino Composting Toilet
Diesel or Gas Fired Water Heating System

Energy System:
12V AC unit
1000 W solar array
1400 Ah lithium
3000 W inverter

Warranty:
3 year, 36,000 mile limited Rossmönster
5-year/100,000 Mile Federal Diesel (if applicable)
5-year/100,000 Mile Powertrain

Baja + Features:
MaxTrax table with MKII boards

50” OnX6 Baja Designs light bar

High Clearance Fenders

Super Single conversion

5 x MPT81, 335/80R20 tires

LiquidSpring Suspension

ARB onboard air compressor

12V Starlink wire prep

20,000 LB Winch

AEV Bumper lighting upgrade

AEV RAM Front Bumper



Specs:

Interior Standing Height (top lifted): 78″

Interior Standing Height (top lowered): 62″

Head room in Cab-Over Bed (top lifted): 31″

Dinette Dimensions: 43″ long, 23″ deep

Dinette Bed-Platform Dimensions: 43.5″ x 83″

Pass-Through: 22″x35″



Total Camper: 108sf or 560cu ft

Total Exterior length: 24.5

Total Exterior Width: 94"

Baja Trail
Title

Designed for unparalleled comfort, off-road capability, and ultimate versatility.

Starting at: $379,984

Sleeping Capacity:
Up to 4

Riding Capacity:
Up to 4

Chassis:
Diesel or Gas Powertrain One ton Chassis
Full size side door entry Truck & Cab passthrough

Interior:
Hard-sided actuating top
Premium Corian Countertops (White)
Light gray walls and ceiling
Queen-size cab-over bed (59" x 74")
Convertible rear dinette
130L fridge and freezer (LX Floorplan)
160L fridge and freezer (EX Floorplan)
16”x21” sink
Upper and lower cabinet storage
Table with Lagun mounting system
40-gallon fresh water tanks
Exhaust fan
Four season insulation

Hydronic heat
Hot water system
Hydronic in-floor heat
Nomatic X2 AC

Integrated blackout shades & bug screens

Exterior:
Three rear molle panels
Fiamma awning
Fresh Water Connection
Heavy Duty Shore Power Inlet

Safety:
Smoke / CO Detector
Fire Extinguisher

Kitchen:
Stainless Steel Sink with Folding Faucet
Refrigerator/Freezer
Stainless Steel Microwave Oven
Induction Cooktop

Bath:
Exterior Shower
Trelino Composting Toilet
Diesel or Gas Fired Water Heating System

Energy System:
12V AC unit
600 W solar array
1200 Ah lithium
3000 W inverter

Warranty:
3 year, 36,000 mile limited Rossmönster
5-year/100,000 Mile Federal Diesel (if applicable)
5-year/100,000 Mile Powertrain

Baja Features:
MaxTrax table with MKII boards

50” OnX6 Baja Designs light bar

Method HD wheels w/ 37" BFG KO2 tires

Carli Suspension Pintop 3.5” system

ARB onboard air compressor

12V Starlink wire prep

Bodyguard bumper

Bumper cube lights & 20" light bar





Specs:

Interior Standing Height (top lifted): 78″

Interior Standing Height (top lowered): 62″

Head room in Cab-Over Bed (top lifted): 31″

Dinette Dimensions: 42″ long, 23″ deep

Dinette Bed-Platform Dimensions: 42″ x 75″

Pass-Through: 24″x36″



Total Camper: 91sf or 475cu ft

Total Exterior length: 23.5

Total Exterior Width: 85"

Baja+
Title

Designed to deliver everything you love about the Baja, but more of it.



Starting at: $444,611

Sleeping Capacity:
Up to 6

Riding Capacity:
Up to 6

Chassis:
Diesel or Gas Powertrain Built on a Class 5 Chassis
Full-size side door entry Truck & Cab passthrough

Interior:
Hard-sided actuating top
Premium Corian Countertops (White)
Light gray walls and ceiling
Queen-size cab-over bed (59″ x 83″)
Convertible rear dinette
130L fridge and freezer (LX Floorplan)
160L fridge and freezer (EX Floorplan)
16”x21” sink
Upper and lower cabinet storage
Table with Lagun mounting system
68-gallon freshwater (40 interior, 28 exterior)

Exhaust fan
Four season insulation
Hydronic heat
Hot water system
Hydronic in-floor heat
Nomatic X3 AC
Blackout window covers

Exterior:
Three rear molle panels
Fiamma awning
Fresh Water Connection
Heavy Duty Shore Power Inlet

Safety:
Smoke / CO Detector
Fire Extinguisher

Kitchen:
Stainless Steel Sink with Folding Faucet
Refrigerator/Freezer
Stainless Steel Microwave Oven
Induction Cooktop

Bath:
Exterior Shower
Trelino Composting Toilet
Diesel or Gas Fired Water Heating System

Energy System:
12V AC unit
1000 W solar array
1400 Ah lithium
3000 W inverter

Warranty:
3 year, 36,000 mile limited Rossmönster
5-year/100,000 Mile Federal Diesel (if applicable)
5-year/100,000 Mile Powertrain

Baja + Features:
MaxTrax table with MKII boards

50” OnX6 Baja Designs light bar

High Clearance Fenders

Super Single conversion

5 x MPT81, 335/80R20 tires

LiquidSpring Suspension

ARB onboard air compressor

12V Starlink wire prep

20,000 LB Winch

AEV Bumper lighting upgrade

AEV RAM Front Bumper





Specs:

Interior Standing Height (top lifted): 78″

Interior Standing Height (top lowered): 62″

Head room in Cab-Over Bed (top lifted): 31″

Dinette Dimensions: 43″ long, 23″ deep

Dinette Bed-Platform Dimensions: 43.5″ x 83″

Pass-Through: 22″x35″



Total Camper: 108sf or 560cu ft

Total Exterior length: 24.5

Total Exterior Width: 94"

Baja By video
Poster
Poster

Want more space and the ultimate amount of cargo capacity?

Explore Baja+

INTERESTED IN your next Adventure Truck?
Title

Shoot us a note and we’ll be glad to answer any questions and help you get the ball rolling.
Title
Title

Quick links

JOIN THE ROSSMÖNSTER TRIBE

Sign up for our newsletter to stay up to date on all things Rossmönster.

711 S Bowen St, Longmont, CO 80501

©ROSSMÖNSTER, 2025. TERMS & CONDITIONS / PRIVACY POLICY
Title
